SE-A220A 3-Stage Planetary Reducer Gearbox
SE-A220A 3-Stage Planetary Reducer Gearbox
SKU:PLA-ce2668
Experience superior torque and efficiency with the SE-A220A 3-Stage Planetary Reducer Gearbox, ideal for industrial applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
SE-A220A 3-Stage Planetary Reducer Gearbox
$1,899.99
Quantity: 1
Claim Your Seller Account
SE-A220A 3-Stage Planetary Reducer Gearbox
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

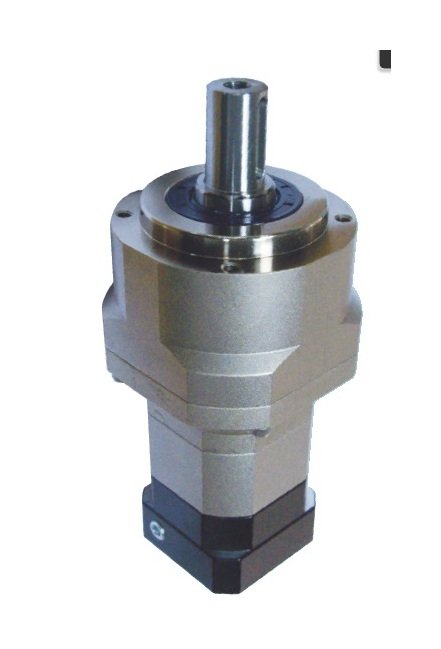

The Servobox Series Model SE-A220A 3-Stage Planetary Reducer Gearbox is a high-performance solution designed to deliver precision and reliability in demanding industrial applications. With a 175 ratio and P0 Backlash Class, this gearbox offers exceptional torque capabilities with a rated output torque of 1870 N·m. It ensures efficient power transmission with an efficiency exceeding 90%. The gearbox's modular design allows for easy installation and versatile connectivity, making it an ideal choice for applications requiring high torque, stability, and speed reduction ratio.

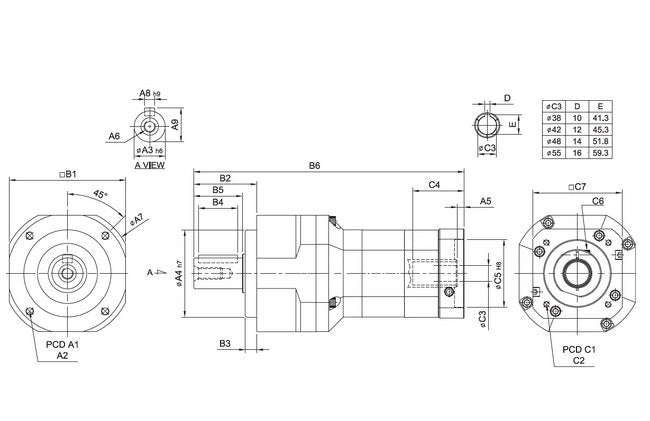

Product Specifications
Dimensions Dimension A1
218 mm
Dimensions Dimension A2
M16 x P2.0
Dimensions Dimension A3
75 mm
Dimensions Dimension A4
180 mm
Dimensions Dimension A5
11.5 mm | 13.5 mm
Dimensions Dimension A6
M16 x P2.0
Dimensions Dimension A7
252 mm
Dimensions Dimension A8
20 mm
Dimensions Dimension A9
79.5 mm
Dimensions Dimension B1
220 mm
Dimensions Dimension B2
139 mm
Dimensions Dimension B3
30 mm
Dimensions Dimension B4
90 mm
Dimensions Dimension B5
104 mm
Dimensions Dimension B6
527.5 mm
Dimensions Dimension C1
200 mm | 215 mm | 265 mm
Dimensions Dimension C2
M10 | M12
Dimensions Dimension C3
38 mm | 42 mm | 48 mm | 55 mm
Dimensions Dimension C4
114.5 mm | 116.5 mm
Dimensions Dimension C5
114.3 mm | 180 mm | 230 mm
Dimensions Dimension C6
M10 x P1.5
Dimensions Dimension C7
182 mm | 200 mm | 250 mm
Features Features
High TorqueHigher output torque is compared to spur gear planetary gear reducers.High StabilityEmploys high tensile strength alloy steel. Gear hardening is made for the entire gear which extends gear service life and maintains high accuracy after a long period of operation.High Speed Reduction RatioThe gear reducer is a modular design. The planetary gear box can be connected. The speed reduction ratio can reach over 1/10000.
Specifications Backlash
⤠7 arc·min
Specifications Backlash Class
P0
Specifications Efficiency
⥠90 %
Specifications Lubrication
Synthetic Grease
Specifications Mass Moments Of Inertia
1.26 kg·cm²
Specifications Maximum Acceleration Torque T2b
1.8 Times of Rated Output Torque
Specifications Maximum Axial Force F2ab
25500 N
Specifications Maximum Input Speed N1b
3000 rpm
Specifications Maximum Output Torque Emergency Stop Torque T2not
3 Times of Rated Output Torque
Specifications Maximum Radial Force F2rb
51000 N
Specifications Model
220
Specifications Mounting Position
Any
Specifications Noise Level
⤠70 dB
Specifications Operating Temperature
-25 to +90 ºC
Specifications Output Bearing
Standard (Keyway)
Specifications Protection Class
Ingress Protection (IP65)
