SE-A220A 3-Stage Planetary Reducer Gearbox with Solid Output Shaft Bearing
SE-A220A 3-Stage Planetary Reducer Gearbox with Solid Output Shaft Bearing
SKU:PLA-a4cacc
High-performance SE-A220A 3-Stage Planetary Reducer Gearbox with Solid Output Shaft Bearing. Low backlash, high efficiency. Ideal for demanding applications.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
SE-A220A 3-Stage Planetary Reducer Gearbox with Solid Output Shaft Bearing
$2,399.99
Quantity: 1
Claim Your Seller Account
SE-A220A 3-Stage Planetary Reducer Gearbox with Solid Output Shaft Bearing
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

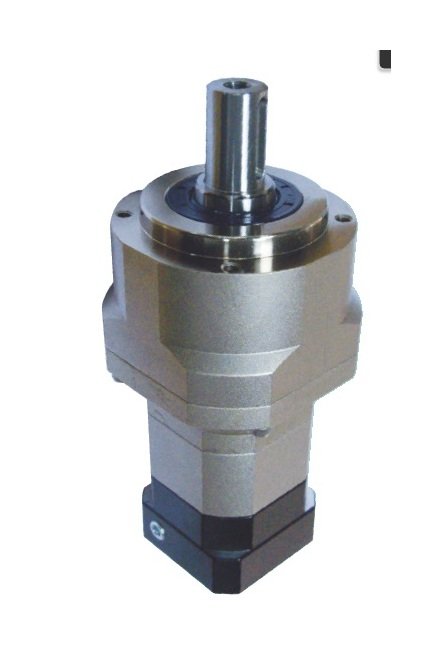

The Servobox Series Model SE-A220A 3-Stage Planetary Reducer Gearbox boasts exceptional performance with a 300 Ratio and P1 Backlash Class. With a Solid Output Shaft Bearing design, this gearbox ensures low backlash (<9 arc·min), high efficiency (>90%), and a rated output torque of 1911 N·m. Operating at speeds up to 3000 RPM, this gearbox offers high stability and speed reduction ratios exceeding 1/10000. Crafted from high tensile strength alloy steel, it meets rigorous industry standards for durability and precision.

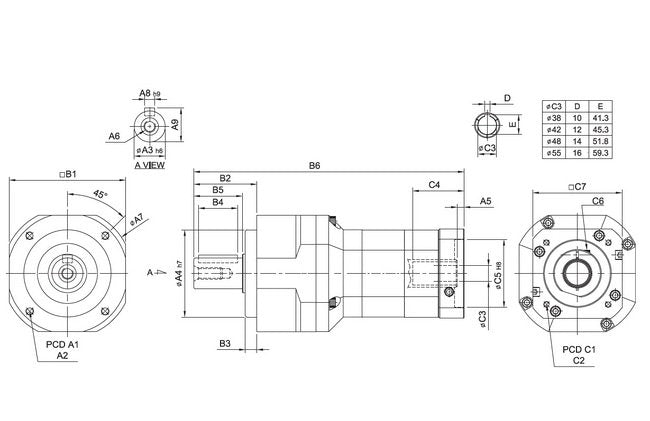

Product Specifications
Dimensions Dimension A1
218 mm
Dimensions Dimension A2
M16 x P2.0
Dimensions Dimension A3
75 mm
Dimensions Dimension A4
180 mm
Dimensions Dimension A5
11.5 mm | 13.5 mm
Dimensions Dimension A6
M16 x P2.0
Dimensions Dimension A7
252 mm
Dimensions Dimension A8
20 mm
Dimensions Dimension A9
79.5 mm
Dimensions Dimension B1
220 mm
Dimensions Dimension B2
139 mm
Dimensions Dimension B3
30 mm
Dimensions Dimension B4
90 mm
Dimensions Dimension B5
104 mm
Dimensions Dimension B6
527.5 mm
Dimensions Dimension C1
200 mm | 215 mm | 265 mm
Dimensions Dimension C2
M10 | M12
Dimensions Dimension C3
38 mm | 42 mm | 48 mm | 55 mm
Dimensions Dimension C4
114.5 mm | 116.5 mm
Dimensions Dimension C5
114.3 mm | 180 mm | 230 mm
Dimensions Dimension C6
M10 x P1.5
Dimensions Dimension C7
182 mm | 200 mm | 250 mm
Features Features
High TorqueHigher output torque is compared to spur gear planetary gear reducers.High StabilityEmploys high tensile strength alloy steel. Gear hardening is made for the entire gear which extends gear service life and maintains high accuracy after a long period of operation.High Speed Reduction RatioThe gear reducer is a modular design. The planetary gear box can be connected. The speed reduction ratio can reach over 1/10000.
Specifications Backlash
⤠9 arc·min
Specifications Backlash Class
P1
Specifications Efficiency
⥠90 %
Specifications Lubrication
Synthetic Grease
Specifications Mass Moments Of Inertia
0.82 kg·cm²
Specifications Maximum Acceleration Torque T2b
1.8 Times of Rated Output Torque
Specifications Maximum Axial Force F2ab
25500 N
Specifications Maximum Input Speed N1b
3000 rpm
Specifications Maximum Output Torque Emergency Stop Torque T2not
3 Times of Rated Output Torque
Specifications Maximum Radial Force F2rb
51000 N
Specifications Model
220
Specifications Mounting Position
Any
Specifications Noise Level
⤠70 dB
Specifications Operating Temperature
-25 to +90 ºC
Specifications Output Bearing
Solid Output Shaft (No Keyway)
Specifications Protection Class
Ingress Protection (IP65)
