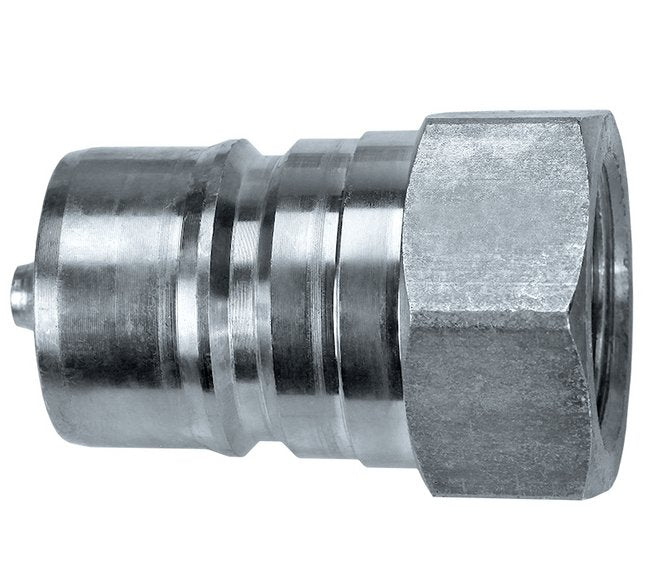

Seal Fast 1.73" Carbon Steel Type A Quick Connect Hydraulic Plug
Seal Fast 1.73" Carbon Steel Type A Quick Connect Hydraulic Plug
SKU:COU-e46481
Seal Fast Carbon Steel Type A Hydraulic Plug - ISO 7241-A compliant, durable, high-performance
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Seal Fast 1.73" Carbon Steel Type A Quick Connect Hydraulic Plug
$24.99
Quantity: 1
Claim Your Seller Account
Seal Fast 1.73" Carbon Steel Type A Quick Connect Hydraulic Plug
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Seal Fast 1.73 Inch Carbon Steel Type A Quick Connect Hydraulic Plug is expertly designed to meet the stringent ISO 7241-A standard, ensuring exceptional quality and performance. Crafted from durable carbon steel, this hydraulic plug is interchangeable with various leading brands and features a reliable working pressure of 3600 psi. With an overall length of 1.73 inches and a working temperature range from -13 to +250 ºF, this plug is ideal for diverse hydraulic applications in construction, manufacturing, and more.
Product Specifications
Applications
This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
Specifications Approvals
International Organization for Standardization (ISO 7241-A)
Specifications Body Size
1/2 in
Specifications End Size
1/2 in. Female NPT
Specifications Hex Size
27 mm
Specifications Interchangeable With
Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series
Specifications Material
Carbon Steel
Specifications Overall Diameter
32 mm | 1.25 in
Specifications Overall Length
44 mm | 1.73 in
Specifications Style
Hydraulic Plugs
Specifications Type
A
Specifications Working Pressure
3600 psi
Specifications Working Temperature Range
-13 to +250 ºF | -25 to +120 ºC
