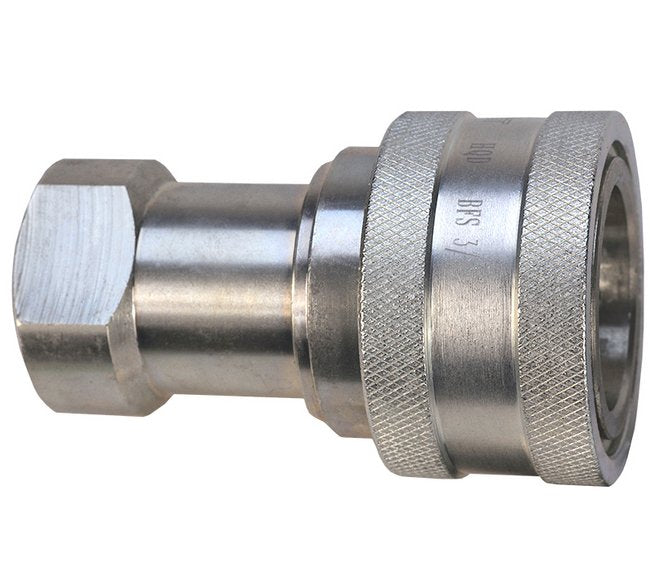

Seal Fast 1.85in Carbon Steel Type B Quick Connect Hydraulic Socket

Name: Seal Fast 1.85in Carbon Steel Type B Quick Connect Hydraulic Socket
Brand: Seal Fast, Inc.
SKU: COU-1ad47a
Price: 29.99 USD
Availability: OutOfStock

SKU:COU-1ad47a

Durable Seal Fast 1.85in Carbon Steel Type B Quick Connect Hydraulic Socket. ISO 7241-A compliant, 4600 psi working pressure, versatile for varied hydraulic applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Seal Fast Carbon Steel Type B Quick Connect Hydraulic Socket is a durable and efficient hydraulic coupling designed to meet ISO 7241-A standards. Constructed with high-quality carbon steel, this socket boasts a working pressure of 4600 psi and a working temperature range of -13 to +250 ºF, making it suitable for a wide range of hydraulic applications. With interchangeable compatibility with various leading brands, this socket ensures secure and reliable connections for construction equipment, manufacturing machinery, and in-plant systems. Its rugged construction makes it ideal for both stationary and mobile applications, guaranteeing optimal performance and longevity.

Product Specifications

Applications

This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.

Specifications Approvals

International Organization for Standardization (ISO 7241-A)

Specifications Balls

GCr 15

Specifications Body Size

1/4 in

Specifications Coupler Material

Steel

Specifications End Size

1/4 in. Female NPT

Specifications Hex Size

19 mm

Specifications Interchangeable With

Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series

Specifications Locking O Ring Material

Spring Steel

Specifications Material

Carbon Steel

Specifications Overall Diameter

25 mm | 0.98 in

Specifications Overall Length

47 mm | 1.85 in

Specifications Seal Material

Buna-N (Nitrile)

Specifications Spring Material

Spring Steel

Specifications Style

Hydraulic Sockets

Specifications Surface Treatment

Zinc Plating and Cr 3+ Passivation

Specifications Type

Specifications Valve Material

Steel

Specifications Working Pressure

4600 psi

Specifications Working Temperature Range

-13 to +250 ºF | -25 to +120 ºC

Seal Fast 1.85in Carbon Steel Type B Quick Connect Hydraulic Socket
