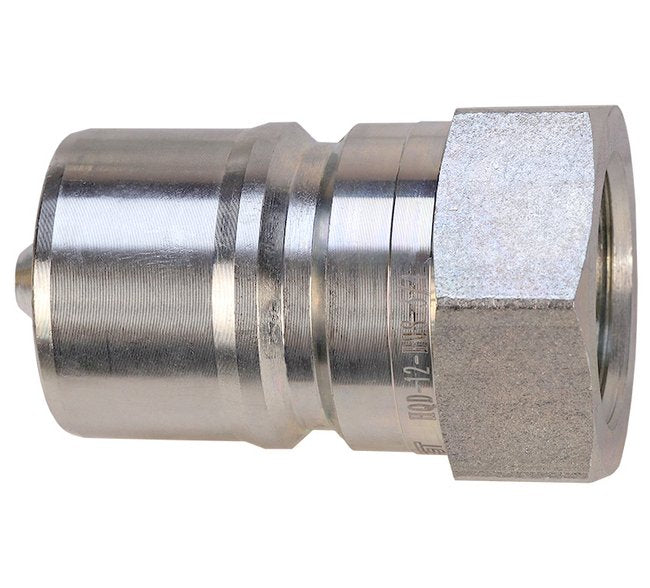

Seal Fast Carbon Steel Type B Quick Connect Hydraulic Plug - 2.95 in Length
Seal Fast Carbon Steel Type B Quick Connect Hydraulic Plug - 2.95 in Length
SKU:COU-dae892
Durable Seal Fast Carbon Steel Hydraulic Plug meets ISO 7241-A standard, ideal for varied hydraulic applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Seal Fast Carbon Steel Type B Quick Connect Hydraulic Plug - 2.95 in Length
$24.99
Quantity: 1
Claim Your Seller Account
Seal Fast Carbon Steel Type B Quick Connect Hydraulic Plug - 2.95 in Length
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Seal Fast Carbon Steel Type B Quick Connect Hydraulic Plug, measuring 2.95 inches in length, is expertly designed to meet the ISO 7241-A standard. Made of durable carbon steel and interchangeable with various industry-leading brands, this hydraulic plug is ideal for a wide range of hydraulic applications in construction equipment, manufacturing machinery, and in-plant systems. With a working pressure of 3000 psi and a wide operating temperature range, this rugged plug ensures reliable fluid transfer connections for diverse applications.
Product Specifications
Applications
This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
Specifications Approvals
International Organization for Standardization (7241-A)
Specifications Body Size
1 in
Specifications End Size
1 in. Female NPT
Specifications Hex Size
41 mm
Specifications Interchangeable With
Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series
Specifications Material
Carbon Steel
Specifications Overall Diameter
46 mm | 1.81 in
Specifications Overall Length
75 mm | 2.95 in
Specifications Style
Hydraulic Plugs
Specifications Type
B
Specifications Working Pressure
3000 psi
Specifications Working Temperature Range
-13 to +250 ºF | -25 to +120 ºC
