Seal Fast Type A Hydraulic Plug - Carbon Steel 2.16 in
Seal Fast Type A Hydraulic Plug - Carbon Steel 2.16 in
SKU:COU-2adf5c
Seal Fast hydraulic plug: robust carbon steel design, ISO 7241-A compliant, 3600 psi working pressure
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Seal Fast Type A Hydraulic Plug - Carbon Steel 2.16 in
$24.99
Quantity: 1
Claim Your Seller Account
Seal Fast Type A Hydraulic Plug - Carbon Steel 2.16 in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

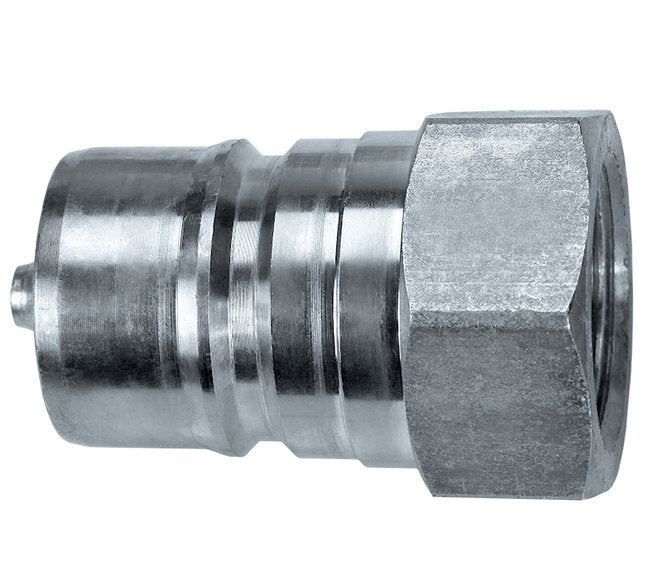

The Seal Fast Type A Hydraulic Plug, constructed from durable carbon steel, is designed to meet ISO 7241-A standards. With an overall length of 2.16 inches, this plug features a working pressure of 3600 psi, making it ideal for various hydraulic applications in construction, manufacturing, and mobile equipment. Interchangeable with multiple series, it provides a secure and efficient connection for hydraulic fluid, chemicals, and gas lines. Rugged and reliable, this plug ensures seamless operation and maintenance of hydraulic systems.
Product Specifications
Applications
This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
Specifications Approvals
International Organization for Standardization (ISO 7241-A)
Specifications Body Size
3/4 in
Specifications End Size
3/4 in. Female NPT
Specifications Hex Size
34 mm
Specifications Interchangeable With
Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series
Specifications Material
Carbon Steel
Specifications Overall Diameter
37 mm | 1.45 in
Specifications Overall Length
55 mm | 2.16 in
Specifications Style
Hydraulic Plugs
Specifications Type
A
Specifications Working Pressure
3600 psi
Specifications Working Temperature Range
-13 to +250 ºF | -25 to +120 ºC
