Sealtite® EFST Flexible Liquid-Tight Metal Conduit

Name: Sealtite® EFST Flexible Liquid-Tight Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-94ee43
Price: 299.99 USD
Availability: OutOfStock

SKU:LIQ-94ee43

Discover Sealtite® EFST Conduit - Flexible, Liquid-Tight, and Durable. IP 67 Rated. For General Construction. Temperature Range: -4ºF to +176ºF.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

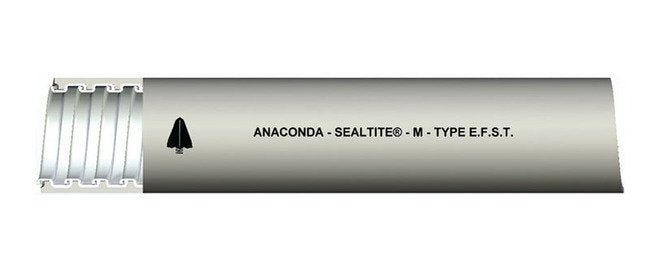

The Sealtite® EFST Flexible Liquid-Tight Metal Conduit is a premium solution for wiring applications that require a durable, liquid-tight raceway. Constructed with a hot-dipped zinc galvanized steel core and a PVC outer jacket, this conduit offers superior protection for electrical conductors. With an IP 67 rating when used with approved connectors, it ensures reliable performance in various environments. Designed for general construction grade applications, this conduit features a temperature range of -4ºF to +176ºF (-20ºC to +80ºC) and comes in various trade sizes. Smooth jacket appearance makes it suitable for exposed installations.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 1/4" through 6". Conduit sizes 2-1/2", 3", 3-1/2", and 4" are Type UA/EFST.Smooth appearing jacket for exposed applications.Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

22 in | 558.8 mm

Specifications Approx Weight Per 100 Ft

534 lbs | 242.22 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

15502 | JIC | JIC-5 | LT-500

Specifications Electrical Trade Size

5 in | 129 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

4.975 to 5.035 in | 126.365 to 127.889 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

25 ft | 7.62 m

Specifications Optional Colors

Black

Specifications Outside Diameter

5.505 to 5.565 in | 139.827 to 141.351 mm

Specifications Packaging

Standard Package

Specifications Type

EFST

Sealtite® EFST Flexible Liquid-Tight Metal Conduit
