Sealtite EFST LFMC Flexible Metal Conduit

Name: Sealtite EFST LFMC Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-19bc20
Price: 199.99 USD
Availability: OutOfStock

SKU:LIQ-19bc20

Sealtite EFST LFMC Flexible Metal Conduit - Durable, Flexible, and Liquid-Tight. Ideal for versatile wiring applications.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

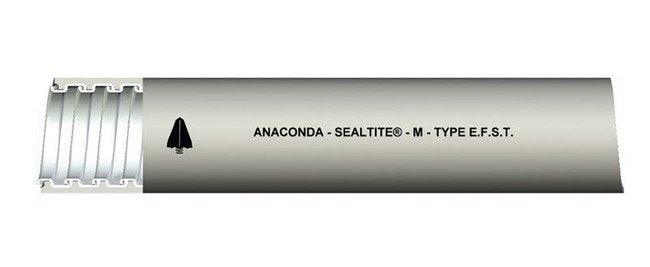

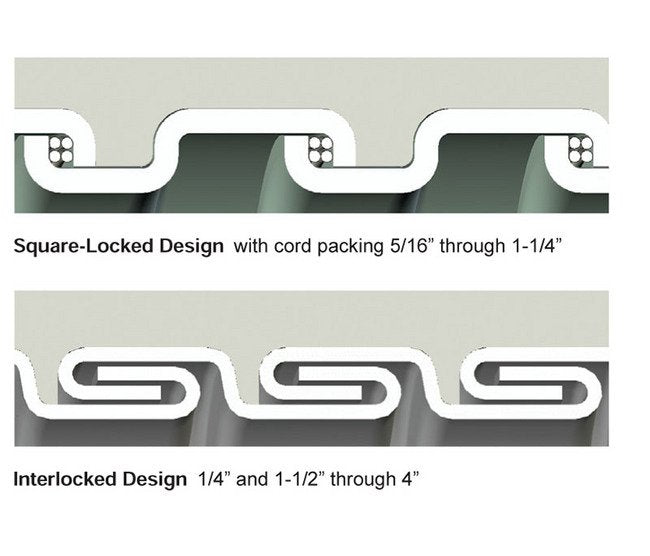

The Sealtite EFST LFMC Flexible Metal Conduit is a versatile solution for wiring installations that require a flexible, liquid-tight raceway. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit ensures durability and protection for electrical conductors. With an IP 67 rating when used with approved connectors, it offers superior ingress protection. Ideal for general construction grade applications, it operates within a temperature range of -4ºF to +176ºF (-20ºC to +80ºC). The conduit is available in various trade sizes ranging from 1/4" to 6", making it suitable for a wide range of wiring installations.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 1/4" through 6". Conduit sizes 2-1/2", 3", 3-1/2", and 4" are Type UA/EFST.Smooth appearing jacket for exposed applications.Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

5.5 in | 139.7 mm

Specifications Approx Weight Per 100 Ft

104 lbs | 47.17 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

15104 | 55-10-71-03 | 6106-35-00 | EF | JIC | JIC-1-1/2 | LT-15

Specifications Electrical Trade Size

1-1/2 in | 41 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.575 to 1.600 in | 40.005 to 40.640 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

150 ft | 45.72 m

Specifications Optional Colors

Black

Specifications Outside Diameter

1.865 to 1.900 in | 47.371 to 48.260 mm

Specifications Packaging

Standard Coils

Specifications Type

EFST

Sealtite EFST LFMC Flexible Metal Conduit
