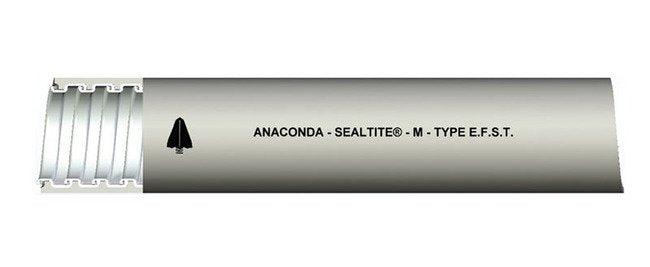

Sealtite Flexible Liquid Tight Metal Conduit (EFST)

Name: Sealtite Flexible Liquid Tight Metal Conduit (EFST)
Brand: Anamet Electrical, Inc.
SKU: LIQ-9811dd
Price: 449.99 USD
Availability: OutOfStock

SKU:LIQ-9811dd

Sealtite Flexible Liquid Tight Metal Conduit (EFST) - Versatile, durable, and environmentally certified.

$449.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sealtite Flexible Liquid Tight Metal Conduit (EFST) is a versatile solution for wiring applications, constructed with a hot-dipped zinc galvanized steel core and a PVC outer jacket, ensuring flexibility and liquid-tight protection. This conduit, with an IP 67 rating when used with approved connectors, is designed for general construction grade applications with a temperature range of -4ºF to +176ºF (-20ºC to +80ºC). It comes in a standard coil packaging and is RoHS and WEEE certified, making it environmentally friendly. With industry-standard approvals and a reliable build, the Sealtite EFST conduit is a top choice for various projects.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

39 lbs | 17.69 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

12104 | 55-09-40-05 | 6103-45-00 | EF | JIC | JIC-3/4 | LT-11 | VF

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.815 to 0.835 in | 20.701 to 21.209 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

500 ft | 152.4 m

Specifications Optional Colors

Black

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Standard Coils

Specifications Type

EFST

Sealtite Flexible Liquid Tight Metal Conduit (EFST)
