Sealtite Flexible Metal Conduit - Liquid Tight Type EFST
Sealtite Flexible Metal Conduit - Liquid Tight Type EFST
SKU:LIQ-b86d0e
Flexible Sealtite Type EFST Conduit - Reliable liquid-tight protection with IP 67 rating. Ideal for general construction applications.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Sealtite Flexible Metal Conduit - Liquid Tight Type EFST
$139.99
Quantity: 1
Claim Your Seller Account
Sealtite Flexible Metal Conduit - Liquid Tight Type EFST
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

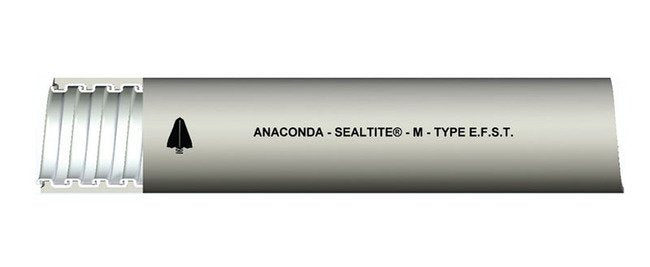

The Sealtite Type EFST Flexible Metal Conduit offers a reliable liquid-tight raceway solution for wiring applications. Constructed with a hot-dipped zinc galvanized steel core and a PVC outer jacket, this conduit ensures superior protection for electrical conductors. With an IP 67 rating when paired with approved end connectors, it delivers quality performance without requiring agency approvals. Suitable for temperatures ranging from -4ºF to +176ºF (-20ºC to +80ºC), this conduit is designed to meet general construction grade applications, offering flexibility and durability for various industrial settings.
Product Specifications
Application 0
Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 1/4" through 6". Conduit sizes 2-1/2", 3", 3-1/2", and 4" are Type UA/EFST.Smooth appearing jacket for exposed applications.Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
2.5 in | 63.5 mm
Specifications Approx Weight Per 100 Ft
25 lbs | 11.34 kg
Specifications Color
GRAY
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
EF | JIC | JIC-1/2 | LT-11 | VF
Specifications Electrical Trade Size
1/2 in | 16 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.620 to 0.640 in | 15.748 to 16.256 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
200 ft | 60.96 m
Specifications Optional Colors
Black
Specifications Outside Diameter
0.820 to 0.840 in | 20.828 to 21.336 mm
Specifications Packaging
Standard Package
Specifications Type
EFST
