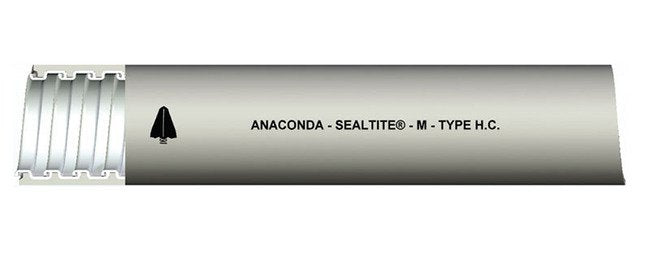

Sealtite HC Liquid-Tight Flexible Metal Conduit

Name: Sealtite HC Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-35850f
Price: 89.99 USD
Availability: OutOfStock

SKU:LIQ-35850f

Durable Sealtite HC conduit for high/low-temp wiring protection. Flexible, liquid-tight, IP67 rated. Ideal for various applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

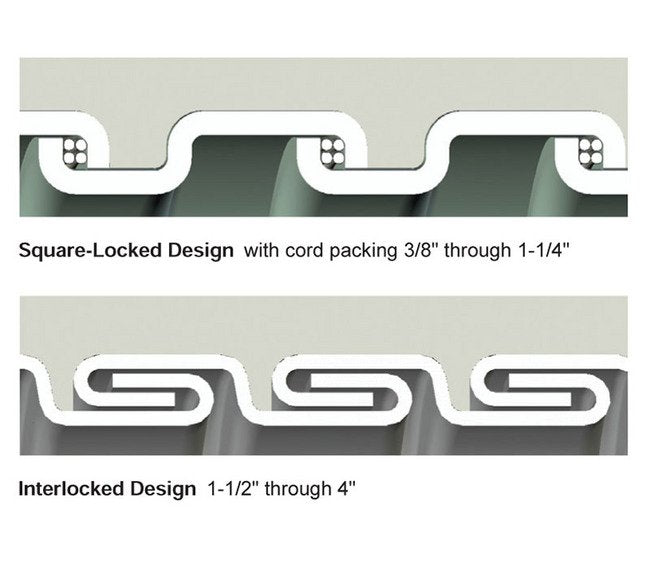

The Sealtite HC Liquid-Tight Flexible Metal Conduit offers a durable solution for high and low-temperature environments. Constructed with a hot-dipped zinc galvanized steel core and a PVC outer jacket, this conduit provides a flexible and liquid-tight raceway for wiring. With an IP 67 rating when paired with approved connectors, it ensures superior wiring protection without the need for agency approvals. Suitable for temperature ranges from -51ºF to +221ºF, this conduit is ideal for various applications where reliability is paramount.

Product Specifications

Application 0

High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

4.5 in | 114.3 mm

Specifications Approx Weight Per 100 Ft

66 lbs | 29.94 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

34102 | AT-14 | HLT-1-1/4

Specifications Electrical Trade Size

1-1/4 in | 35 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.370 to 1.395 in | 34.798 to 35.433 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

50 ft | 15.24 m

Specifications Note

Sizes above 2" available on special order.Other colors available upon request.

Specifications Optional Colors

Black

Specifications Outside Diameter

1.635 to 1.660 in | 41.529 to 42.164 mm

Specifications Packaging

Small Cartons

Specifications Type

Sealtite HC Liquid-Tight Flexible Metal Conduit
