Sealtite LFMC Type ZHUA - Zero Halogen-Low Smoke-Low Flame Spread Conduit
Sealtite LFMC Type ZHUA - Zero Halogen-Low Smoke-Low Flame Spread Conduit
SKU:LIQ-92fac5
Flexible, safe, and compliant Sealtite LFMC Type ZHUA Conduit for your wiring needs. UL listed, zero halogen, low smoke, and flame spread resistant.
Regular price
$250.99
Regular price
Sale price
$250.99
Unit price
per
Initiate Order
Sealtite LFMC Type ZHUA - Zero Halogen-Low Smoke-Low Flame Spread Conduit
$250.99
Quantity: 1
Claim Your Seller Account
Sealtite LFMC Type ZHUA - Zero Halogen-Low Smoke-Low Flame Spread Conduit
$250.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

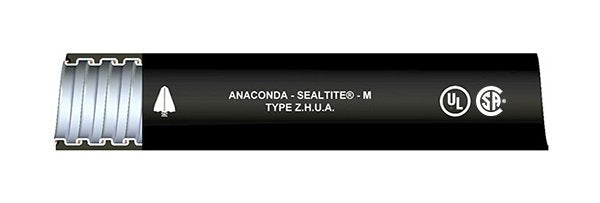

Enhance your wiring solutions with the Sealtite LFMC Type ZHUA Conduit. This flexible liquid-tight conduit, made of hot-dipped zinc galvanized steel core with a flame-retardant, low smoke, and zero halogen TPU jacket, ensures safe and reliable electrical installations. UL listed and IP 67 rated, this conduit meets industry standards for safety and performance. Suitable for hazardous locations, direct burial, and concrete installations, it provides utmost protection and compliance with NEC regulations.
Product Specifications
Application 0
For Restricted or Self-Contained Ventilation AreasTemperature ranges -40°F to + 176°F (-40°C to +80°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 3/8" through 1-1/4" if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8" and 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Article 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of sizes from 3/8" through 4". Approved for direct burial and in concrete trade sizes 3/8" through 4". Complies with UL Standard 360 File No. E18917; and NEC Article 350.
Meets Or Exceeds The Following Standards 0
Flame Spread Index ASTM E162Smoke Density (Generation) ASTM E662Toxic Gas Generation Bombardier SMP-800CJacket Material is U.L. 94 CertifiedConduit is U.L. 360 Listed
Nec Articles 0
Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors
Specifications Approx Weight Per 100 Ft
148 lbs | 67.13 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
88164 | LSZH | ZHLA-16
Specifications Electrical Trade Size
2 in | 53 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Bend Radius
7.0 in | 177.8 mm
Specifications Inside Diameter
2.020 to 2.045 in | 51.308 to 51.943 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant | Zero Halogen
Specifications Jacket Material
Thermoplastic Polyurethane (TPU)
Specifications Length
100 ft | 30.48 m
Specifications Note
Colors are available upon request.Test data results obtained from an independent test laboratory. Consult factory for additional details.
Specifications Outside Diameter
2.340 to 2.375 in | 59.436 to 60.325 mm
Specifications Packaging
Small Reels
Specifications Type
ZHUA
