Sealtite LFNC Type CNP Non-Metallic Flexible Conduit
Sealtite LFNC Type CNP Non-Metallic Flexible Conduit
SKU:LIQ-6dbf23
Durable Sealtite LFNC Type CNP Non-Metallic Flexible Conduit for -4ºF to +140ºF temp range. UL Listed & CSA Certified. IP 67 rated.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sealtite LFNC Type CNP Non-Metallic Flexible Conduit
$499.99
Quantity: 1
Claim Your Seller Account
Sealtite LFNC Type CNP Non-Metallic Flexible Conduit
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

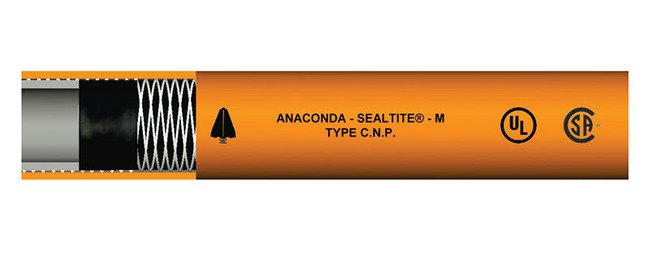

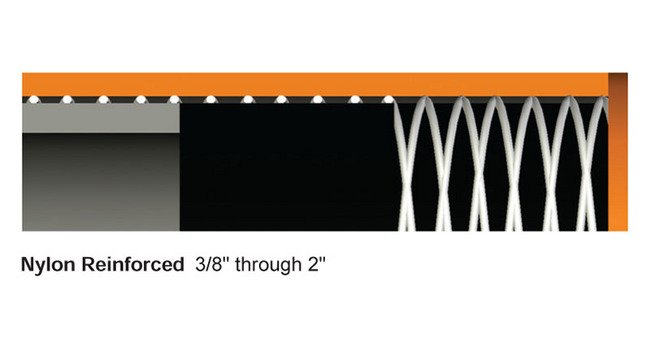

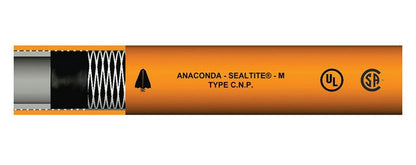

The Sealtite LFNC Type CNP Non-Metallic Flexible Conduit provides a reliable solution for wiring applications requiring a temperature range of -4ºF to +140ºF (-20ºC to +60ºC). Constructed with a smooth inner PVC core, oil and sunlight-resistant outer cover, and a nylon reinforcing layer, this conduit ensures durability and flexibility. Approved for both exposed and concealed locations, it meets UL Listed & CSA Certified Type A non-metallic conduit standards. With an IP 67 rating when used with approved connectors, this conduit is crush, abrasion, and strain resistant, making it ideal for environments with abrasion or physical abuse factors.
Product Specifications
Application 0
Where Abrasion or Physical Abuse are Factors, Constant Flexing or MovementTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)
Installation 0
Conduit used with standard connectors for non-metallic conduit Type A for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -4ºF to +140ºF (-20ºCto +60ºC).Complies with UL Standard 1660 Type A conduit File No. E-75863; CSA C22.2 File No. LL15257; and NEC Article 356.Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Flexible, but tough; crush, abrasion and strain resistant. Where abrasion, physical abuse or constant flexing are a factor.
Nec Articles 0
Article 250.102 Equipment Bonding JumpersArticle 250.134 (B) Equipment GroundingArticle 300.22 (D) Information Technology EquipmentArticle 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-A)Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2Article 503.10 (A) (3) and (B) Class III Div. 1 & 2Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
2.5 in | 63.5 mm
Specifications Approx Weight Per 100 Ft
15 lbs | 6.8 kg
Specifications Color
Orange
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Cross Reference
6501-30-00 | 87004 | LFNC-A | LNM-P 10
Specifications Electrical Trade Size
3/8 in | 12 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.485 to 0.505 in | 12.319 to 12.827 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
800 ft | 243.84 m
Specifications Note
Colors available on request.
Specifications Optional Colors
Gray
Specifications Outside Diameter
0.755 to 0.775 in | 19.177 to 19.685 mm
Specifications Packaging
Reels
Specifications Type
CNP
