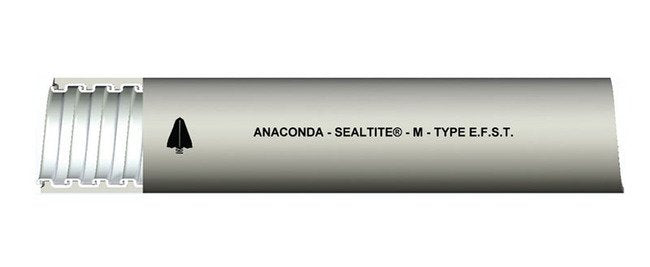

Sealtite Liquid Tight Metal Conduit - Type EFST

Name: Sealtite Liquid Tight Metal Conduit - Type EFST
Brand: Anamet Electrical, Inc.
SKU: LIQ-b3049e
Price: 89.99 USD
Availability: OutOfStock

SKU:LIQ-b3049e

Sealtite Type EFST Liquid Tight Metal Conduit - Flexible, Durable, and Reliable for Wiring Applications

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sealtite Type EFST Flexible All Purpose Liquid Tight Metal Conduit (LFMC) is designed to provide a versatile and durable solution for wiring applications. Constructed with a hot-dipped zinc galvanized steel core and a PVC outer jacket, this conduit offers a flexible and liquid-tight raceway. With an IP 67 rating and industry certifications like RoHS and WEEE, it ensures reliable performance in various settings. Suitable for general construction-grade applications with an IP rating of 66/67 and an operating temperature range from -4ºF to +176ºF (-20ºC to +80ºC), this conduit is a robust choice for your wiring needs.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

39 lbs | 17.69 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

12102 | 55-09-40-03 | 6103-30-00 | EF | JIC | JIC-3/4 | LT-11 | VF

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.815 to 0.835 in | 20.701 to 21.209 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Optional Colors

Black

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Small Cartons

Specifications Type

EFST

Sealtite Liquid Tight Metal Conduit - Type EFST
