Sealtite Oil Resistant Liquid-Tight Metal Conduit, Type OR - 2in, 50ft
Sealtite Oil Resistant Liquid-Tight Metal Conduit, Type OR - 2in, 50ft
SKU:LIQ-c58445
Sealtite Type OR Liquid-Tight Flexible Metal Conduit - Oil Resistant, Flexible, Durable - RoHS WEEE Certified
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Sealtite Oil Resistant Liquid-Tight Metal Conduit, Type OR - 2in, 50ft
$249.99
Quantity: 1
Claim Your Seller Account
Sealtite Oil Resistant Liquid-Tight Metal Conduit, Type OR - 2in, 50ft
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

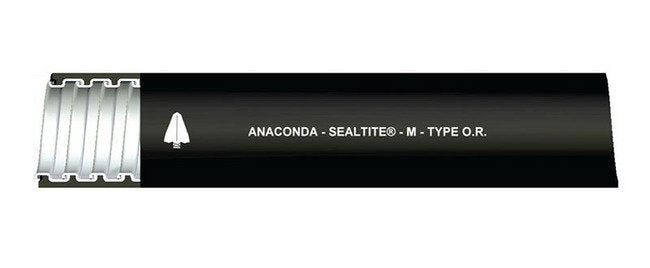

The Sealtite Type OR Liquid-Tight Flexible Metal Conduit (LFMC) is designed with a special oil-resistant PVC jacket to provide a flexible and durable wiring raceway. Constructed with a hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit is ideal for applications where agency approvals are not required. With an IP 67 rating when paired with approved end connectors, it ensures superior wiring protection in environments exposed to cutting oils. The conduit is RoHS WEEE certified, offering a temperature range of -9ºF to +221ºF (-23ºC to +105ºC) and features an easy installation process with standard liquid-tight connectors.
Product Specifications
Application 0
Where Exposure to Cutting Oils OccurTemperature Range: -9ºF to +221ºF (-23ºC to +105ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -9ºF to +221ºF (-23ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
7.0 in | 177.8 mm
Specifications Approx Weight Per 100 Ft
136 lbs | 61.69 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
LOR-16
Specifications Electrical Trade Size
2 in | 53 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
2.020 to 2.045 in | 51.308 to 51.943 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Note
Sizes above 2" available on special order.Type OR-H available as special with heavy plated steel core and integral bonding wire.
Specifications Optional Colors
Gray
Specifications Outside Diameter
2.340 to 2.375 in | 59.436 to 60.325 mm
Specifications Packaging
Small Cartons
Specifications Type
OR
