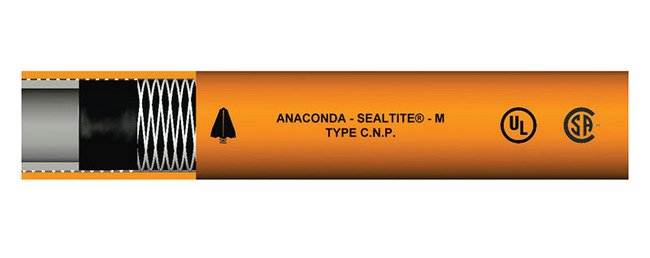

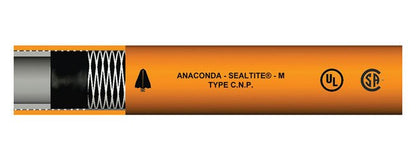

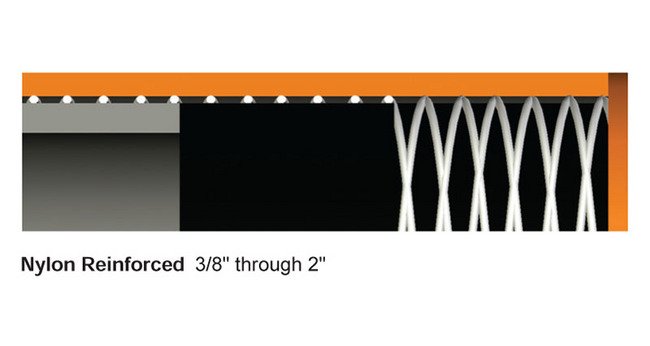

The Sealtite Type CNP Non-conductive Conduit offers a durable solution for wiring applications. Made of thermoplastic PVC with an oil and sunlight-resistant cover, it features a nylon reinforcing layer for added strength. This UL listed and CSA certified conduit is suitable for temperatures ranging from -4ºF to +140ºF (-20ºC to +60ºC) and boasts an IP 67 rating with approved end connectors. Easy to install and flexibly tough, it meets NEC and industry-specific standards for a reliable performance.
Product Specifications
Application 0
Where Abrasion or Physical Abuse are Factors, Constant Flexing or MovementTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)
Installation 0
Conduit used with standard connectors for non-metallic conduit Type A for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -4ºF to +140ºF (-20ºCto +60ºC).Complies with UL Standard 1660 Type A conduit File No. E-75863; CSA C22.2 File No. LL15257; and NEC Article 356.Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Flexible, but tough; crush, abrasion and strain resistant. Where abrasion, physical abuse or constant flexing are a factor.
Nec Articles 0
Article 250.102 Equipment Bonding JumpersArticle 250.134 (B) Equipment GroundingArticle 300.22 (D) Information Technology EquipmentArticle 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-A)Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2Article 503.10 (A) (3) and (B) Class III Div. 1 & 2Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
8.0 in | 203.2 mm
Specifications Approx Weight Per 100 Ft
81 lbs | 36.74 kg
Specifications Color
Orange
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Cross Reference
6506-24-00 | 87502 | LFNC-A | LNM-P 15
Specifications Electrical Trade Size
1-1/2 in | 41 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.585 to 1.620 in | 40.259 to 41.148 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Note
Colors available on request.
Specifications Optional Colors
Gray
Specifications Outside Diameter
2.045 to 2.080 in | 51.943 to 52.832 mm
Specifications Packaging
Standard Carton
Specifications Type
CNP
