Sealtite Type CNP Non-Metallic Conduit
Sealtite Type CNP Non-Metallic Conduit
SKU:LIQ-828ce8
Durable, liquid-tight Sealtite Type CNP conduit for secure wiring applications. Meets UL, CSA, and NEC standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Sealtite Type CNP Non-Metallic Conduit
$99.99
Quantity: 1
Claim Your Seller Account
Sealtite Type CNP Non-Metallic Conduit
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

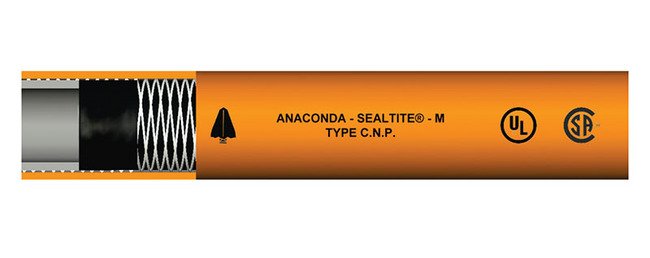

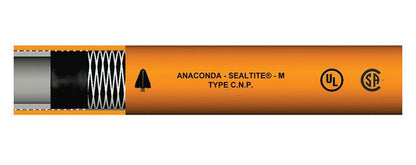

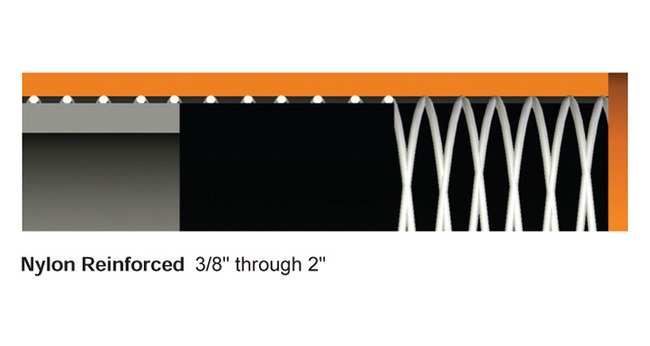

The Sealtite Type CNP Non-Metallic Conduit offers a durable solution for wiring projects requiring a liquid-tight raceway. Constructed with a smooth inner thermoplastic PVC core, oil-resistant PVC outer cover, and nylon reinforcing layer, this conduit is ideal for applications with temperature ranges of -4ºF to +140ºF (-20ºC to +60ºC). Compliant with UL Listed, CSA Certified, and NEC standards, it ensures safety and reliability in various environments. Easy to install and flexible yet tough, this conduit meets the demands of abrasion, physical abuse, and constant flexing challenges.
Product Specifications
Application 0
Where Abrasion or Physical Abuse are Factors, Constant Flexing or MovementTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)
Installation 0
Conduit used with standard connectors for non-metallic conduit Type A for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -4ºF to +140ºF (-20ºCto +60ºC).Complies with UL Standard 1660 Type A conduit File No. E-75863; CSA C22.2 File No. LL15257; and NEC Article 356.Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Flexible, but tough; crush, abrasion and strain resistant. Where abrasion, physical abuse or constant flexing are a factor.
Nec Articles 0
Article 250.102 Equipment Bonding JumpersArticle 250.134 (B) Equipment GroundingArticle 300.22 (D) Information Technology EquipmentArticle 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-A)Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2Article 503.10 (A) (3) and (B) Class III Div. 1 & 2Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
3.0 in | 76.2 mm
Specifications Approx Weight Per 100 Ft
21 lbs | 9.53 kg
Specifications Color
Orange
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Cross Reference
6502-60-00 | 87103 | 87104 | LFNC-A | LNM-P 11
Specifications Electrical Trade Size
1/2 in | 16 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.620 to 0.640 in | 15.748 to 16.256 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
500 ft | 152.4 m
Specifications Note
Colors available on request.
Specifications Optional Colors
Gray
Specifications Outside Diameter
0.910 to 0.930 in | 23.114 to 23.622 mm
Specifications Packaging
Reels
Specifications Type
CNP
