Sealtite Type CNP Non-Metallic Liquid-Tight Flexible Conduit - 3/8in x 250ft
Sealtite Type CNP Non-Metallic Liquid-Tight Flexible Conduit - 3/8in x 250ft
SKU:LIQ-b9792b
Sealtite Type CNP Non-Metallic Conduit - Flexible, Durable, UL Listed & CSA Certified
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sealtite Type CNP Non-Metallic Liquid-Tight Flexible Conduit - 3/8in x 250ft
$349.99
Quantity: 1
Claim Your Seller Account
Sealtite Type CNP Non-Metallic Liquid-Tight Flexible Conduit - 3/8in x 250ft
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

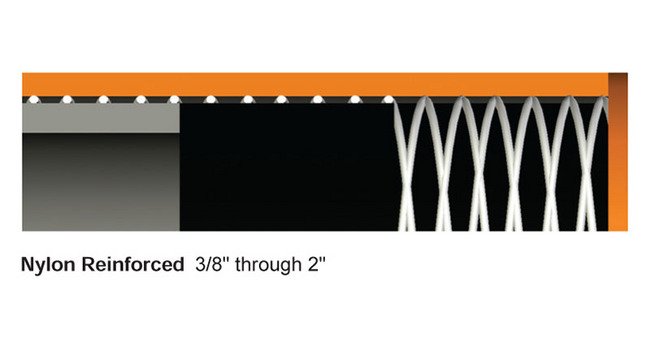

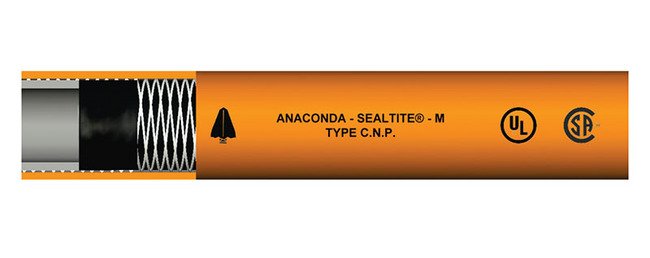

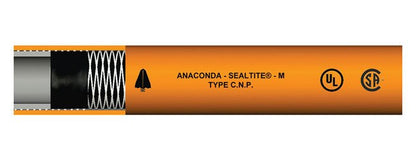

The Sealtite Type CNP Non-Metallic Liquid-Tight Flexible Conduit is a durable solution for wiring applications. With a smooth thermoplastic PVC core, oil-resistant jacket, and nylon reinforcing layer, it offers a liquid-tight raceway. UL listed and CSA certified as Type 'A,' it operates in -4ºF to +140ºF (-20ºC to +60ºC) temperatures. Suitable for exposed/concealed installations, it complies with UL Standard 1660, CSA C22.2, and NEC Article 356. Crush, abrasion, and strain-resistant, it meets rigorous industry standards.
Product Specifications
Application 0
Where Abrasion or Physical Abuse are Factors, Constant Flexing or MovementTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)
Installation 0
Conduit used with standard connectors for non-metallic conduit Type A for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -4ºF to +140ºF (-20ºCto +60ºC).Complies with UL Standard 1660 Type A conduit File No. E-75863; CSA C22.2 File No. LL15257; and NEC Article 356.Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Flexible, but tough; crush, abrasion and strain resistant. Where abrasion, physical abuse or constant flexing are a factor.
Nec Articles 0
Article 250.102 Equipment Bonding JumpersArticle 250.134 (B) Equipment GroundingArticle 300.22 (D) Information Technology EquipmentArticle 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-A)Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2Article 503.10 (A) (3) and (B) Class III Div. 1 & 2Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
2.5 in | 63.5 mm
Specifications Approx Weight Per 100 Ft
15 lbs | 6.8 kg
Specifications Color
Orange
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Cross Reference
6501-30-00 | 87002 | LFNC-A | LNM-P 10
Specifications Electrical Trade Size
3/8 in | 12 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.485 to 0.505 in | 12.319 to 12.827 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
250 ft | 76.2 m
Specifications Note
Colors available on request.
Specifications Optional Colors
Gray
Specifications Outside Diameter
0.755 to 0.775 in | 19.177 to 19.685 mm
Specifications Packaging
Standard Carton
Specifications Type
CNP
