Sealtite Type EFST Flexible Liquid Tight Metal Conduit
Sealtite Type EFST Flexible Liquid Tight Metal Conduit
SKU:LIQ-216914
Flexible, durable, and liquid-tight conduit for superior wiring protection in varied applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Sealtite Type EFST Flexible Liquid Tight Metal Conduit
$129.99
Quantity: 1
Claim Your Seller Account
Sealtite Type EFST Flexible Liquid Tight Metal Conduit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

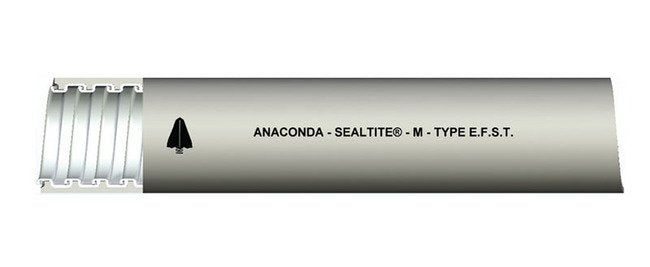

The Sealtite Type EFST Flexible Liquid Tight Metal Conduit is a versatile solution for wiring applications that require a liquid-tight raceway. Constructed with a hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit offers flexibility and durability. With an IP 67 rating when used with approved connectors, it ensures superior wiring protection without the need for agency approvals. Available in various trade sizes and featuring a smooth jacket for exposed applications, this conduit is ideal for general construction grade applications. It operates within a temperature range of -4ºF to +176ºF, making it a reliable choice for diverse environments.
Product Specifications
Application 0
Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 1/4" through 6". Conduit sizes 2-1/2", 3", 3-1/2", and 4" are Type UA/EFST.Smooth appearing jacket for exposed applications.Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
5.5 in | 139.7 mm
Specifications Approx Weight Per 100 Ft
104 lbs | 47.17 kg
Specifications Color
GRAY
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
15102 | 55-10-71-02 | 6106-24-00 | EF | JIC | JIC-1-1/2 | LT-15
Specifications Electrical Trade Size
1-1/2 in | 41 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.575 to 1.600 in | 40.005 to 40.640 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Optional Colors
Black
Specifications Outside Diameter
1.865 to 1.900 in | 47.371 to 48.260 mm
Specifications Packaging
Standard Package
Specifications Type
EFST
