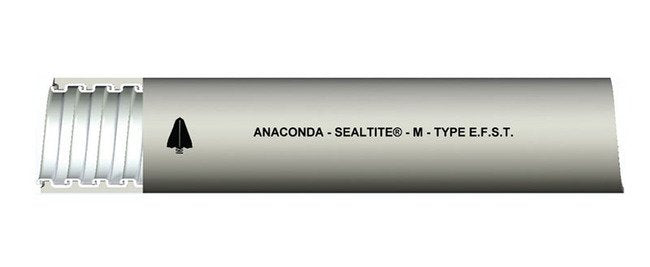

Sealtite Type EFST Flexible Liquid Tight Metal Conduit

Name: Sealtite Type EFST Flexible Liquid Tight Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-f88920
Price: 129.99 USD
Availability: OutOfStock

SKU:LIQ-f88920

Durable and versatile Sealtite Type EFST Conduit for secure wiring applications. IP 67 rated with zinc galvanized steel core and PVC jacket. Suitable for various non-agency approval required uses.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

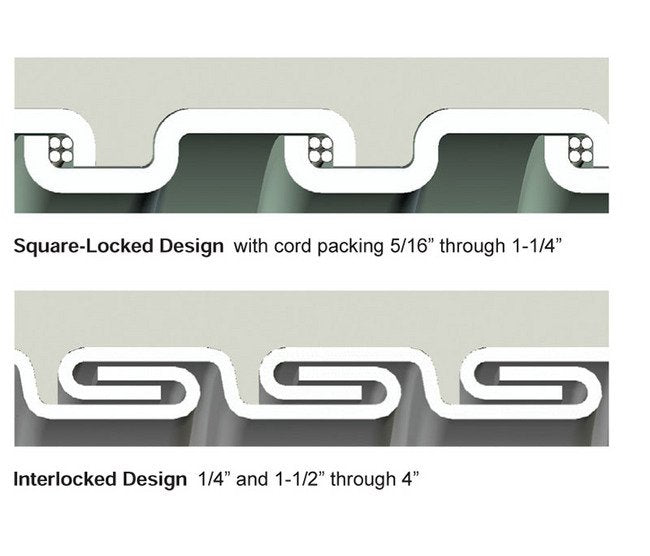

The Sealtite Type EFST Flexible Liquid Tight Metal Conduit is a versatile solution providing a secure, liquid-tight raceway for wiring. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core and a sunlight resistant PVC outer jacket, this conduit ensures durability and reliability. With an IP 67 rating when paired with approved end connectors, it is ideal for various applications where agency approvals are not required. Designed for General Construction Grade Applications, this conduit operates within a temperature range of -4ºF to +176ºF (-20ºC to +80ºC).

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Specifications Approx Inside Bend Radius

2.5 in | 63.5 mm

Specifications Approx Weight Per 100 Ft

25 lbs | 11.34 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

11101 | 55-39-37-01 | 6102-30-00 | EF | JIC | JIC-1/2 | LT-11 | VF

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.620 to 0.640 in | 15.748 to 16.256 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Optional Colors

Black

Specifications Outside Diameter

0.820 to 0.840 in | 20.828 to 21.336 mm

Specifications Packaging

Small Cartons

Specifications Type

EFST

Sealtite Type EFST Flexible Liquid Tight Metal Conduit
