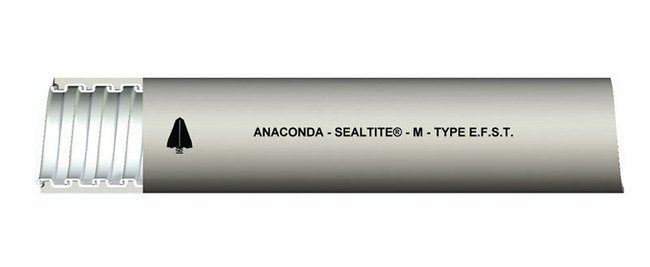

Sealtite Type EFST Flexible Liquid Tight Metal Conduit

Name: Sealtite Type EFST Flexible Liquid Tight Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-bd353d
Price: 529.99 USD
Availability: OutOfStock

SKU:LIQ-bd353d

Discover reliable, liquid-tight wiring protection with the Sealtite Type EFST Conduit!

$529.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sealtite Type EFST Flexible Liquid Tight Metal Conduit is a versatile solution offering a liquid-tight raceway for wiring needs. Constructed with a hot-dipped zinc galvanized steel core and PVC outer jacket, this conduit ensures durability and sunlight resistance. Ideal for general construction grade applications, it delivers superior wiring protection and is IP 67 rated when used with approved connectors. With a temperature range of -4ºF to +176ºF, this conduit provides a liquid-tight raceway for electrical conductors, meeting RoHS and WEEE industry certifications.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 1/4" through 6". Conduit sizes 2-1/2", 3", 3-1/2", and 4" are Type UA/EFST.Smooth appearing jacket for exposed applications.Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

2.5 in | 63.5 mm

Specifications Approx Weight Per 100 Ft

25 lbs | 11.34 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

11101 | 55-39-38-02 | 6102-60-00 | EF | JIC | JIC-1/2 | LT-11 | VF

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.620 to 0.640 in | 15.748 to 16.256 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

1000 ft | 304.8 m

Specifications Optional Colors

Black

Specifications Outside Diameter

0.820 to 0.840 in | 20.828 to 21.336 mm

Specifications Packaging

Standard Coils

Specifications Type

EFST

Sealtite Type EFST Flexible Liquid Tight Metal Conduit
