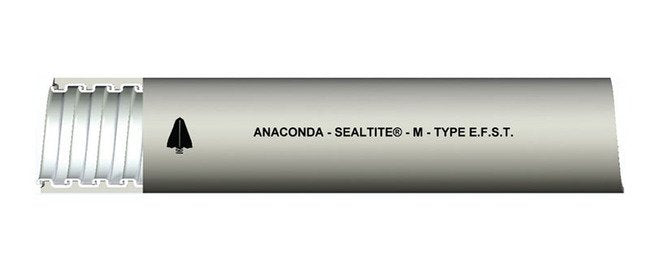

Sealtite Type EFST Flexible Liquid Tight Metal Conduit

Name: Sealtite Type EFST Flexible Liquid Tight Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-e652d4
Price: 299.99 USD
Availability: OutOfStock

SKU:LIQ-e652d4

Durable Sealtite Type EFST Conduit with IP 67 Rating & RoHS WEEE Certification. Ideal for General Construction. Temperature Range: -4ºF to +176ºF.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sealtite Type EFST Flexible Liquid Tight Metal Conduit is a durable solution for wiring, featuring a hot-dipped zinc galvanized steel core with a PVC outer jacket. With an IP 67 rating and RoHS WEEE certification, this conduit ensures reliable performance in various environments. Ideal for general construction applications with a temperature range of -4ºF to +176ºF (-20ºC to +80ºC), it offers flexibility and protection, making it a versatile choice for both consumer and institutional use.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

39 lbs | 17.69 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

12110 | 55-09-40-05 | 6103-60-00 | EF | JIC | JIC-3/4 | LT-11 | VF

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.815 to 0.835 in | 20.701 to 21.209 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

1000 ft | 304.8 m

Specifications Optional Colors

Black

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Standard Coils

Specifications Type

EFST

Sealtite Type EFST Flexible Liquid Tight Metal Conduit
