Sealtite Type EFST Liquid Tight Metal Conduit

Name: Sealtite Type EFST Liquid Tight Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-a32c3d
Price: 149.99 USD
Availability: OutOfStock

SKU:LIQ-a32c3d

Flexible, liquid-tight Sealtite Type EFST conduit for reliable wiring solutions. IP 67 rated with zinc galvanized steel core and PVC jacket. RoHS WEEE certified.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

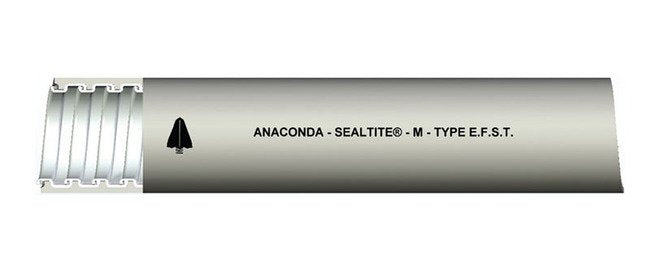

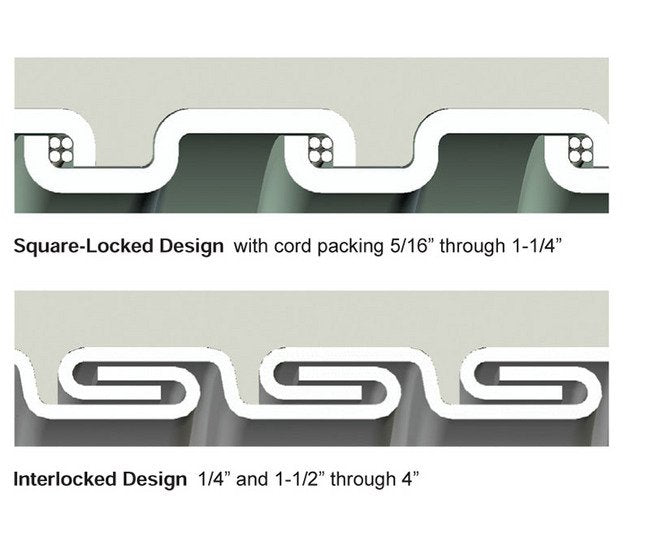

The Sealtite Type EFST Flexible All-Purpose Liquid Tight Metal Conduit (LFMC) is a durable solution for wiring applications. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit provides a flexible and liquid-tight raceway. With an IP 67 rating when installed with approved end connectors, it ensures reliable performance and safety. Suitable for a wide range of applications in general construction, this conduit meets RoHS WEEE industry certifications and offers a temperature range of -4ºF to +176ºF for versatility and durability.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Specifications Approx Inside Bend Radius

2.0 in | 50.8 mm

Specifications Approx Weight Per 100 Ft

21 lbs | 9.53 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

EF | JIC | JIC-3/8 | LT-10 | VF

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.485 to 0.505 in | 12.319 to 12.827 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

250 ft | 76.2 m

Specifications Optional Colors

Black

Specifications Outside Diameter

0.690 to 0.710 in | 17.526 to 18.034 mm

Specifications Packaging

Standard Package

Specifications Type

EFST
