Sealtite Type EFST Liquid Tight Metal Conduit

Name: Sealtite Type EFST Liquid Tight Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-1d521d
Price: 69.99 USD
Availability: OutOfStock

SKU:LIQ-1d521d

Flexible & liquid-tight Sealtite Type EFST Conduit for superior wiring protection in various applications.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

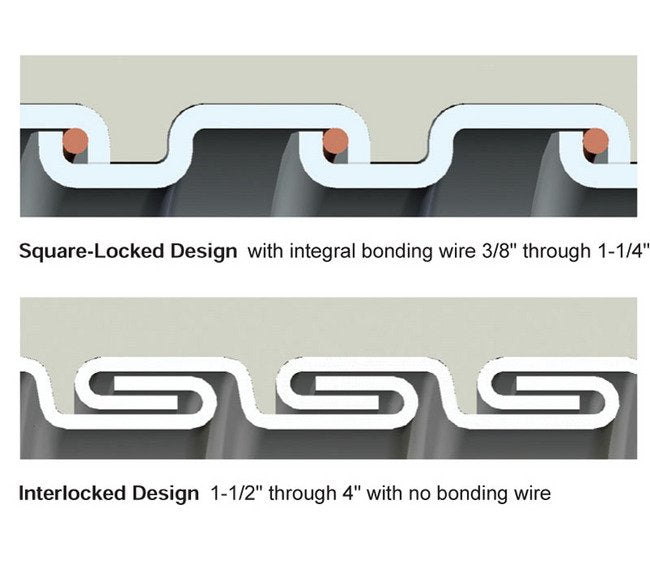

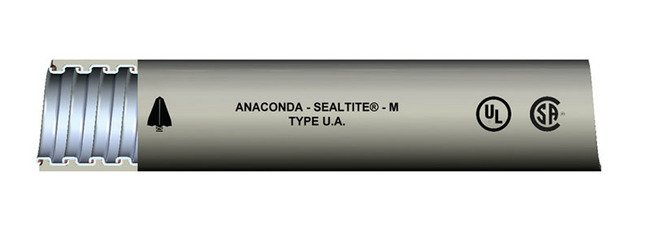

The Sealtite Type EFST Liquid Tight Metal Conduit provides a flexible and liquid-tight raceway for wiring, constructed with interlocked hot-dipped zinc galvanized steel core and a PVC outer jacket. Suitable for general construction-grade applications, this conduit is IP 67 rated when used with approved connectors, ensuring superior wiring protection. With industry certifications including RoHS and WEEE, and compliance with temperature ranges from -4ºF to +176ºF, this conduit is a reliable choice for various electrical projects where agency approvals are not required.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 1/4" through 6". Conduit sizes 2-1/2", 3", 3-1/2", and 4" are Type UA/EFST.Smooth appearing jacket for exposed applications.Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

9.5 in | 241.3 mm

Specifications Approx Weight Per 100 Ft

182 lbs | 82.55 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

27105 | LA-17 | LT-17

Specifications Electrical Trade Size

2-1/2 in | 63 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

2.480 to 2.505 in | 62.992 to 63.627 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

25 ft | 7.62 m

Specifications Optional Colors

Black

Specifications Outside Diameter

2.840 to 2.875 in | 72.136 to 73.025 mm

Specifications Packaging

Standard Package

Specifications Type

EFST

Sealtite Type EFST Liquid Tight Metal Conduit
