Sealtite Type EFST Liquid Tight Metal Conduit 2-inch 50 ft

Name: Sealtite Type EFST Liquid Tight Metal Conduit 2-inch 50 ft
Brand: Anamet Electrical, Inc.
SKU: LIQ-3c15a4
Price: 249.99 USD
Availability: OutOfStock

SKU:LIQ-3c15a4

Sealtite Type EFST - Flexible all-purpose 2-inch metal conduit for secure and versatile wiring installations.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

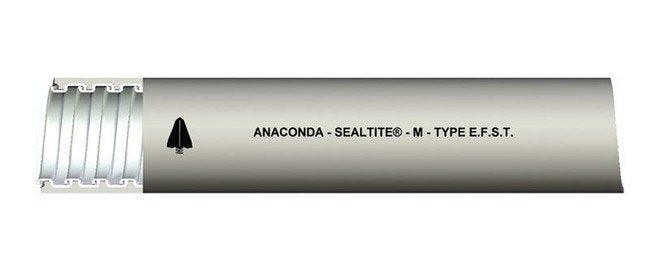

The Sealtite Type EFST is a versatile all-purpose liquid-tight metal conduit designed to provide a flexible and secure raceway for wiring. Constructed with a hot-dipped zinc galvanized steel core and a PVC outer jacket resistant to sunlight, this conduit ensures durability and protection. With an IP 67 rating when used with approved end connectors, it is ideal for various applications where agency approvals are not required. It offers a temperature range of -4ºF to +176ºF (-20ºC to +80ºC), making it suitable for general construction grade applications.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Specifications Approx Inside Bend Radius

7.0 in | 177.8 mm

Specifications Approx Weight Per 100 Ft

136 lbs | 61.69 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

16102 | 55-10-72-02 | 6107-24-00 | EF | JIC | JIC-2 | LT-16

Specifications Electrical Trade Size

2 in | 53 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

2.020 to 2.045 in | 51.308 to 51.943 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

50 ft | 15.24 m

Specifications Optional Colors

Black

Specifications Outside Diameter

2.340 to 2.375 in | 59.436 to 60.325 mm

Specifications Packaging

Standard Package

Specifications Type

EFST

Sealtite Type EFST Liquid Tight Metal Conduit 2-inch 50 ft
