Sealtite Type HC - Liquid-Tight Flex Metal Conduit (1-1/2 in, 50 ft)
Sealtite Type HC - Liquid-Tight Flex Metal Conduit (1-1/2 in, 50 ft)
SKU:LIQ-1efe3f
Sealtite Type HC - Liquid-Tight, Flexible Metal Conduit for High/Low Temp Environments, IP 67 Rated, RoHS WEEE Certified.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Sealtite Type HC - Liquid-Tight Flex Metal Conduit (1-1/2 in, 50 ft)
$179.99
Quantity: 1
Claim Your Seller Account
Sealtite Type HC - Liquid-Tight Flex Metal Conduit (1-1/2 in, 50 ft)
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

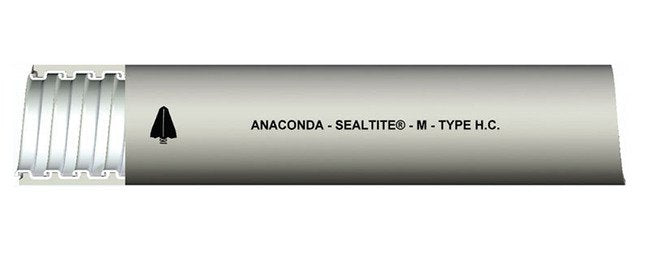

Sealtite Type HC Liquid-Tight Flexible Metal Conduit is designed for high and low-temperature environments, offering a flexible and liquid-tight raceway for wiring. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and a PVC outer jacket, this conduit ensures superior wiring protection. With an IP 67 rating when paired with approved connectors, it is suitable for applications not requiring agency approvals. The conduit's smooth appearance and RoHS WEEE certification make it ideal for various industries, providing a temperature range of -51ºF to +221ºF.
Product Specifications
Application 0
High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
5.5 in | 139.7 mm
Specifications Approx Weight Per 100 Ft
104 lbs | 47.17 kg
Specifications Color
GRAY
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
35102 | AT-15 | HLT-1-1/2
Specifications Electrical Trade Size
1-1/2 in | 41 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.575 to 1.600 in | 40.005 to 40.640 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Note
Sizes above 2" available on special order.Other colors available upon request.
Specifications Optional Colors
Black
Specifications Outside Diameter
1.865 to 1.900 in | 47.371 to 48.260 mm
Specifications Packaging
Small Cartons
Specifications Type
HC
