Sealtite Type MTC - Flexible Metal Conduit 1-1/2in, 150ft

Name: Sealtite Type MTC - Flexible Metal Conduit 1-1/2in, 150ft
Brand: Anamet Electrical, Inc.
SKU: LIQ-79a7fc
Price: 299.99 USD
Availability: OutOfStock

SKU:LIQ-79a7fc

Flexible metal conduit with zinc galvanized steel core for superior wiring protection in machine centers and robotics. RoHS WEEE certified. IP 67 rated when used with approved connectors.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

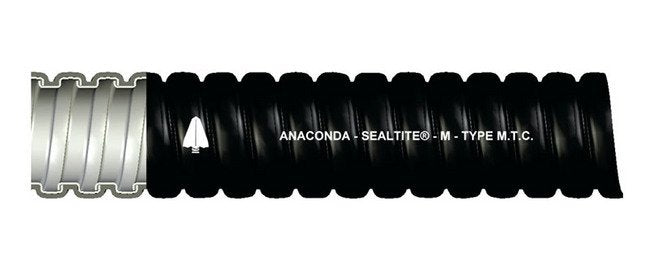

The Sealtite Type MTC Machine Tool Conduit is a flexible liquid-tight conduit designed for wiring applications in machine centers and robotics. This LFMC conduit features a hot-dipped zinc galvanized steel core, ensuring durability and a PVC outer jacket that is sunlight resistant. With an IP 67 rating when used with approved connectors, this conduit offers superior wiring protection while being RoHS WEEE certified. It is extra flexible, suitable for a temperature range of -4°F to +140°F, and comes in a length of 150ft. Ideal for applications not requiring agency approvals.

Product Specifications

Application 0

Extra Flexible. For Use in Machine Centers and RoboticsTemperature Range: -4°F to +140°F (-20°C to +60°C)

Installation 0

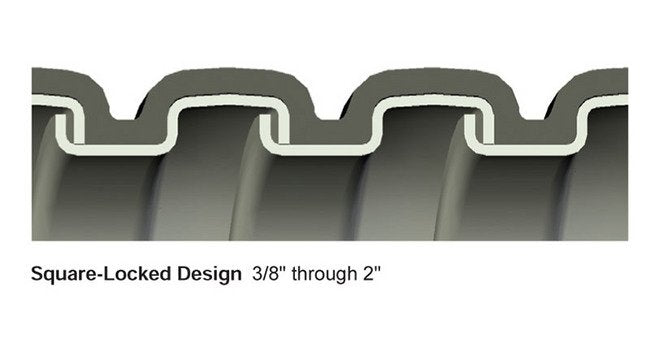

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications. Rated for temperature range of -4ºF to +140ºF (-20ºC to +60ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

4.0 in | 101.6 mm

Specifications Approx Weight Per 100 Ft

70 lbs | 31.75 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

89252 | MTLT | MTLT-1-1/2 | VJC-15

Specifications Electrical Trade Size

1-1/2 in | 41 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.570 to 1.595 in | 39.878 to 40.513 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

150 ft | 45.72 m

Specifications Outside Diameter

1.830 to 1.860 in | 46.482 to 47.244 mm

Specifications Packaging

Small Reels

Specifications Type

MTC
