Sealtite Type MTC - Liquid-Tight Flexible Metal Conduit
Sealtite Type MTC - Liquid-Tight Flexible Metal Conduit
SKU:LIQ-0ff9d4
Sealtite Type MTC - Flexible Metal Conduit for machine centers and robotics, PVC jacket, IP 67 rated, RoHS certified
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Sealtite Type MTC - Liquid-Tight Flexible Metal Conduit
$139.99
Quantity: 1
Claim Your Seller Account
Sealtite Type MTC - Liquid-Tight Flexible Metal Conduit
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

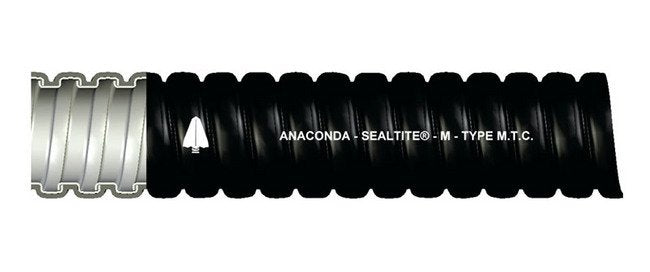

The Sealtite Type MTC Machine Tool Conduit is a high-quality liquid-tight flexible metal conduit designed for superior wiring protection in machine centers and robotics applications. This conduit features a thermoplastic PVC jacket and is constructed of interlocked hot-dipped zinc galvanized steel with a PVC outer jacket, providing a flexible and liquid-tight raceway for electrical conductors. With an IP 67 rating when used with approved connectors, it delivers optimal performance where agency approvals are not required. The conduit is RoHS and WEEE certified, offering industry-leading quality and reliability for a wide range of trade sizes and temperatures. Install with standard liquid-tight connectors for easy setup and enjoy the benefits of a durable, liquid-tight raceway for your electrical wiring needs.
Product Specifications
Application 0
Extra Flexible. For Use in Machine Centers and RoboticsTemperature Range: -4°F to +140°F (-20°C to +60°C)
Installation 0

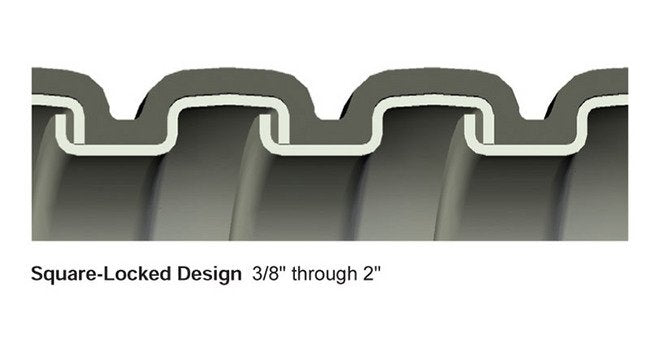

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications. Rated for temperature range of -4ºF to +140ºF (-20ºC to +60ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
2.0 in | 50.8 mm
Specifications Approx Weight Per 100 Ft
20 lbs | 9.07 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
89211 | MTLT | MTLT-1/2 | VJC-11
Specifications Electrical Trade Size
1/2 in | 16 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.620 to 0.640 in | 15.748 to 16.256 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft | 30.48 m
Specifications Outside Diameter
0.818 to 0.843 in | 20.777 to 21.412 mm
Specifications Packaging
Standard Carton
Specifications Type
MTC
