Sealtite Type MTC Liquid-Tight Flexible Metal Conduit

Name: Sealtite Type MTC Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-8362dd
Price: 199.99 USD
Availability: OutOfStock

SKU:LIQ-8362dd

Get superior wiring protection with Sealtite Type MTC Liquid-Tight Flexible Conduit for machine centers and robotics. IP 67 rated and extra flexible.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

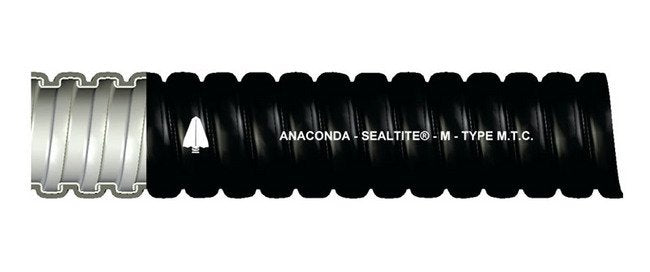

The Sealtite Type MTC Machine Tool Conduit is a durable solution that offers a flexible, liquid-tight raceway for wiring applications. Constructed with continuously interlocked hot dipped zinc galvanized steel core and a PVC outer jacket, this conduit ensures superior wiring protection. Ideal for machine centers and robotics, it features an IP 67 rating when installed with approved connectors. With a temperature range of -4°F to +140°F (-20°C to +60°C), this conduit provides a reliable and extra flexible option for various industrial settings.

Product Specifications

Application 0

Extra Flexible. For Use in Machine Centers and RoboticsTemperature Range: -4°F to +140°F (-20°C to +60°C)

Installation 0

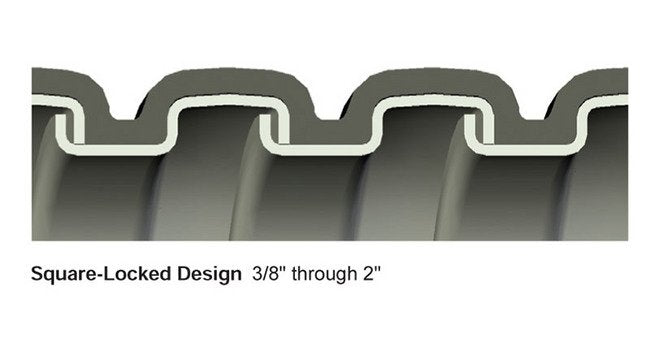

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications. Rated for temperature range of -4ºF to +140ºF (-20ºC to +60ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

5.0 in | 127 mm

Specifications Approx Weight Per 100 Ft

87 lbs | 39.46 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

89262 | MTLT | MTLT-2 | VJC-16

Specifications Electrical Trade Size

2 in | 53 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

2.010 to 2.035 in | 51.054 to 51.689 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Outside Diameter

2.270 to 2.300 in | 57.658 to 58.420 mm

Specifications Packaging

Small Reels

Specifications Type

MTC

Sealtite Type MTC Liquid-Tight Flexible Metal Conduit
