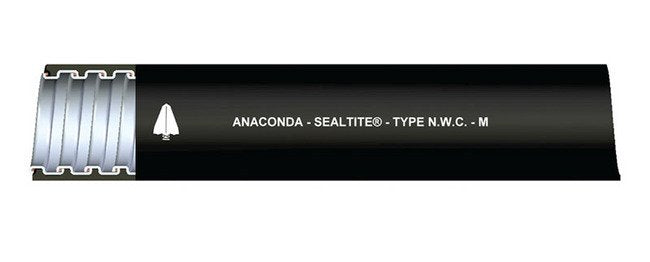

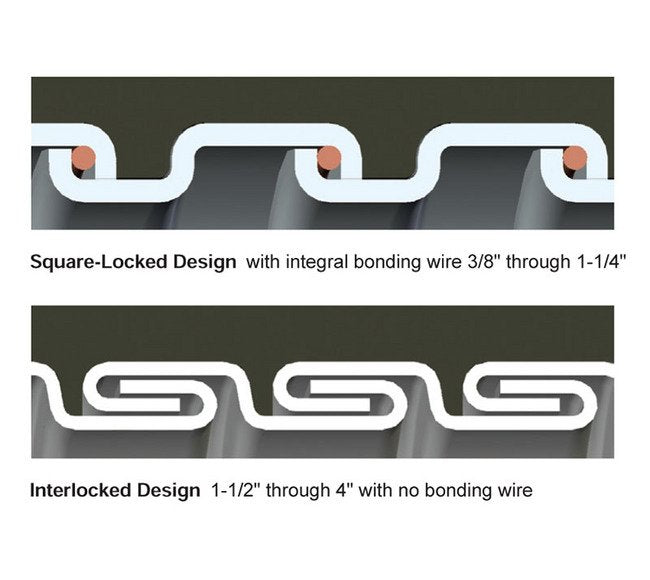

The SEALTITE Type NWC Nuclear Wiring Conduit LFMC is designed for nuclear applications and areas requiring radiation protection. Constructed with a chlorinated polyethylene jacket and continuously interlocked hot-dipped galvanized steel core, this flexible conduit ensures a liquid-tight raceway for wiring. Meeting IEEE 323-1974 and IEEE 383-1974 guidelines, it offers a smooth black jacket that is radiation-resistant. Ideal for temperatures ranging from -40ºF to +192ºF, it comes with an integral bonding wire for added safety.
Product Specifications
Application 0
Nuclear Application or Where Radiation Protection is NecessaryTemperature Range: -40ºF to +192ºF (-40ºC to +89ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Suitable for use within nuclear containment areas.Flexible metal core meets "Construction" requirements of UL Std. 360 sizes 3/8" through 4".Radiation resistant jacket meets IEEE 323-1974 and IEEE 383-1974 guidelines.Rated for temperature range of -40ºF to + 192ºF (-40ºC to +89ºC).Manufactured in a full range of sizes from 3/8" through 4".
Listing 0
NUCLEAR PROCURMENT ISSUES COMMITTEE (NUPIC) NUPIC number 2651
Specifications Approx Inside Bend Radius
8.0 in | 203.2 mm
Specifications Approx Weight Per 100 Ft
25 lbs | 11.34 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Electrical Trade Size
3/8 in | 12 mm
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.484 to 0.504 in | 12.294 to 12.802 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyethylene
Specifications Length
100 ft | 30.48 m
Specifications Outside Diameter
0.690 to 0.710 in | 17.526 to 18.034 mm
Specifications Packaging
Standard Carton
Specifications Type
NWC
