SEALTITE Type NWC Nuclear Wiring Conduit LFMC
SEALTITE Type NWC Nuclear Wiring Conduit LFMC
SKU:LIQ-a555d4
SEALTITE Type NWC Nuclear Wiring Conduit LFMC - Radiation-resistant conduit for nuclear applications, IP 67 rated, meets IEEE standards.
Regular price
$219.99
Regular price
Sale price
$219.99
Unit price
per
Initiate Order
SEALTITE Type NWC Nuclear Wiring Conduit LFMC
$219.99
Quantity: 1
Claim Your Seller Account
SEALTITE Type NWC Nuclear Wiring Conduit LFMC
$219.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

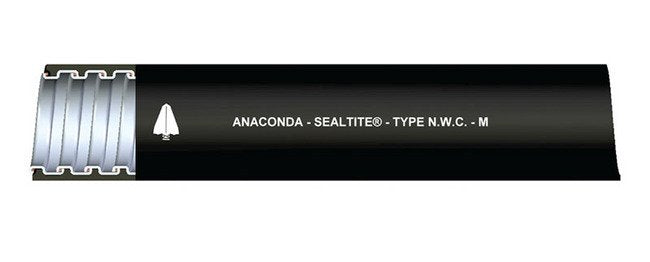

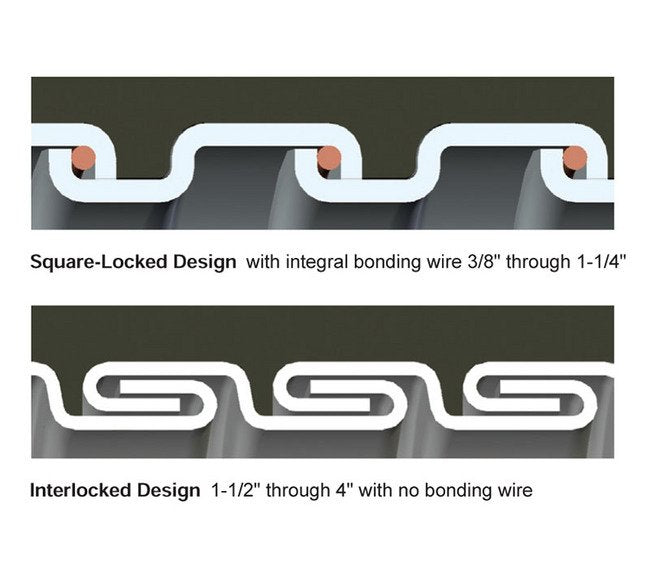

The SEALTITE Type NWC Nuclear Wiring Conduit Liquid-Tight Flexible Metal Conduit (LFMC) is designed for nuclear applications requiring radiation protection. This conduit features a chlorinated polyethylene jacket with a bonding wire, providing a flexible and liquid-tight raceway for wiring. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and a radiation-resistant black jacket, it meets IEEE 323-1974 and IEEE 383-1974 guidelines. Suitable for use within nuclear containment areas, it is IP 67 rated when installed with approved connectors, offering a temperature range of -40ºF to +192ºF (-40ºC to +89ºC). Compliant with NUPIC standards for nuclear procurement.
Product Specifications
Application 0
Nuclear Application or Where Radiation Protection is NecessaryTemperature Range: -40ºF to +192ºF (-40ºC to +89ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Suitable for use within nuclear containment areas.Flexible metal core meets "Construction" requirements of UL Std. 360 sizes 3/8" through 4".Radiation resistant jacket meets IEEE 323-1974 and IEEE 383-1974 guidelines.Rated for temperature range of -40ºF to + 192ºF (-40ºC to +89ºC).Manufactured in a full range of sizes from 3/8" through 4".
Listing 0
NUCLEAR PROCURMENT ISSUES COMMITTEE (NUPIC) NUPIC number 2651
Specifications Approx Inside Bend Radius
18 in | 457.2 mm
Specifications Approx Weight Per 100 Ft
100 lbs | 45.36 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Electrical Trade Size
1-1/4 in | 35 mm
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.380 to 1.410 in | 35.052 to 35.814 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyethylene
Specifications Length
50 ft | 15.24 m
Specifications Outside Diameter
1.630 to 1.660 in | 41.402 to 42.164 mm
Specifications Packaging
Standard Carton
Specifications Type
NWC
