Sealtite Type OR Oil Resistant Jacket LFMC 1"
Sealtite Type OR Oil Resistant Jacket LFMC 1"
SKU:LIQ-ee1a41
Flexible and liquid-tight Sealtite Type OR LFMC for superior wiring protection in oil-exposed environments. IP 67 rated with durable construction.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Sealtite Type OR Oil Resistant Jacket LFMC 1"
$89.99
Quantity: 1
Claim Your Seller Account
Sealtite Type OR Oil Resistant Jacket LFMC 1"
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

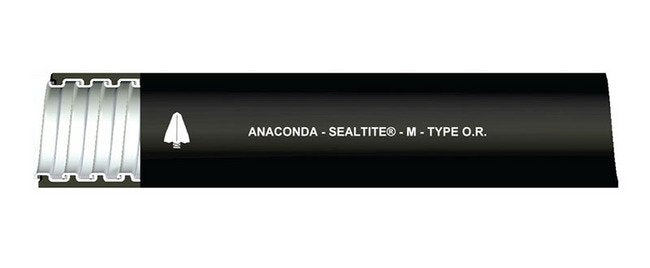

The Sealtite Type OR Special Oil Resistant Jacket Liquid-Tight Flexible Metal Conduit (LFMC) offers a reliable solution for wiring applications where agency approvals are not needed. Constructed with a hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit provides a flexible and liquid-tight raceway for electrical conductors. With an IP 67 rating when used with approved connectors, it ensures superior protection. Suitable for environments with exposure to cutting oils and a temperature range of -9ºF to +221ºF, the Type OR conduit is designed for durability and performance.
Product Specifications
Application 0
Where Exposure to Cutting Oils OccurTemperature Range: -9ºF to +221ºF (-23ºC to +105ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -9ºF to +221ºF (-23ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
4.0 in | 101.6 mm
Specifications Approx Weight Per 100 Ft
51 lbs | 23.13 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
LOR-13
Specifications Electrical Trade Size
1 in | 27 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.030 to 1.055 in | 26.162 to 26.797 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft | 30.48 m
Specifications Note
Sizes above 2" available on special order.Type OR-H available as special with heavy plated steel core and integral bonding wire.
Specifications Optional Colors
Gray
Specifications Outside Diameter
1.290 to 1.315 in | 32.766 to 33.401 mm
Specifications Packaging
Small Cartons
Specifications Type
OR
