SEALTITE Type OR Oil Resistant Liquid-Tight Flexible Metal Conduit (2 inch, 100 ft)
SEALTITE Type OR Oil Resistant Liquid-Tight Flexible Metal Conduit (2 inch, 100 ft)
SKU:LIQ-68cdd7
SEALTITE Type OR 2-inch Oil Resistant Liquid-Tight Conduit - Flexible, Durable, Oil Resistant. IP 67 Rated. RoHS Compliant.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
SEALTITE Type OR Oil Resistant Liquid-Tight Flexible Metal Conduit (2 inch, 100 ft)
$249.99
Quantity: 1
Claim Your Seller Account
SEALTITE Type OR Oil Resistant Liquid-Tight Flexible Metal Conduit (2 inch, 100 ft)
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

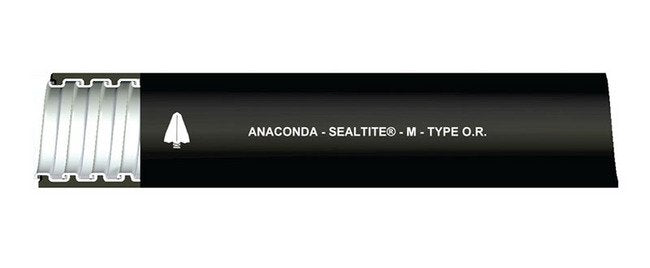

The SEALTITE Type OR Special Oil Resistant Jacket Liquid-Tight Flexible Metal Conduit is designed for applications requiring flexible, liquid-tight raceways. This conduit features a hot-dipped zinc galvanized steel core with an oil-resistant PVC outer jacket, providing superior wiring protection in environments exposed to cutting oils. With an IP 67 rating when installed with approved connectors, this conduit ensures reliable performance in a temperature range of -9ºF to +221ºF. Suitable for sizes up to 2 inches, this conduit is RoHS and WEEE compliant, meeting industry standards for quality and safety.
Product Specifications
Application 0
Where Exposure to Cutting Oils OccurTemperature Range: -9ºF to +221ºF (-23ºC to +105ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -9ºF to +221ºF (-23ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
7.0 in | 177.8 mm
Specifications Approx Weight Per 100 Ft
136 lbs | 61.69 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
LOR-16
Specifications Electrical Trade Size
2 in | 53 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
2.020 to 2.045 in | 51.308 to 51.943 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft | 30.48 m
Specifications Note
Sizes above 2" available on special order.Type OR-H available as special with heavy plated steel core and integral bonding wire.
Specifications Optional Colors
Gray
Specifications Outside Diameter
2.340 to 2.375 in | 59.436 to 60.325 mm
Specifications Packaging
Small Reels
Specifications Type
OR
