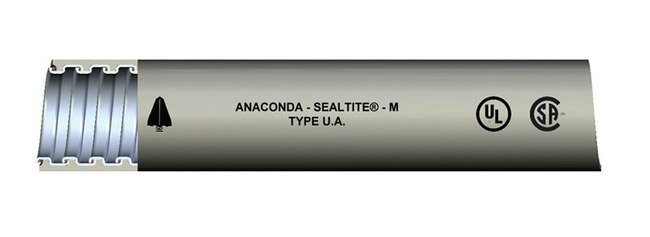

Sealtite Type UA HD Liquid Tight Flexible Metal Conduit

Name: Sealtite Type UA HD Liquid Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-dec223
Price: 379.99 USD
Availability: OutOfStock

SKU:LIQ-dec223

Sealtite Type UA HD - Flexible, Crush & Corrosion-Resistant Conduit for Extreme Environments

$379.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sealtite Type UA HD Liquid Tight Flexible Metal Conduit (LFMC) features a hot-dipped zinc galvanized steel core for superior crush and corrosion resistance. Its durable PVC jacket is UV-resistant, ensuring longevity in various environments. This conduit is suitable for temperatures ranging from -40°F to +176°F (-40°C to +80°C) and is approved for direct burial and concrete installation. Meeting stringent NEC Articles requirements, including those for Information Technology Equipment and Equipment Grounding, this conduit is also certified for Hazardous Locations. Available in Trade sizes from 3/8 to 4 inches, it is CSA Certified 'Heavy-Duty' and compliant with UL, CSA, RoHS, and NFPA 79 standards.

Product Specifications

Specifications Approx Inside Bend Radius

6.3 in | 160 mm

Specifications Approx Weight Per 100 Ft

71 lbs | 32 kg

Specifications Electrical Trade Size

1 in | 27 mm

Specifications Inside Diameter

1.041 to 1.066 in | 26.441 to 27.076 mm

Specifications Length

100 ft | 30.48 m

Specifications Outside Diameter

1.290 to 1.315 in | 32.766 to 33.401 mm

Specifications Packaging

Standard Carton

Sealtite Type UA HD Liquid Tight Flexible Metal Conduit
