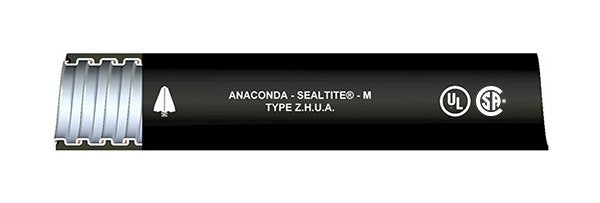

SEALTITE Type ZHUA LFMC - Liquid Tight Flexible Metal Conduit

Name: SEALTITE Type ZHUA LFMC - Liquid Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-4fa302
Price: 349.99 USD
Availability: OutOfStock

SKU:LIQ-4fa302

SEALTITE Type ZHUA LFMC - Flexible, liquid-tight conduit with zero halogen, low smoke, UL Listed & CSA Certified

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SEALTITE Type ZHUA LFMC is a top-tier solution for wiring projects requiring zero halogen, low smoke, and low flame spread properties. This UL Listed conduit features a liquid-tight design with hot-dipped zinc galvanized steel core and a flame-retardant TPU jacket. Suitable for a wide range of applications, it offers easy installation with standard liquid-tight connectors and meets strict industry standards for safety and performance, including UL Listed & CSA Certified. With an IP 67 rating and approvals for various hazardous locations, this conduit exceeds ASTM E162 and E662 standards for flame spread and smoke density, ensuring reliable and compliant performance in critical environments.

Product Specifications

Application 0

For Restricted or Self-Contained Ventilation AreasTemperature ranges -40°F to + 176°F (-40°C to +80°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 3/8" through 1-1/4" if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8" and 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Article 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of sizes from 3/8" through 4". Approved for direct burial and in concrete trade sizes 3/8" through 4". Complies with UL Standard 360 File No. E18917; and NEC Article 350.

Meets Or Exceeds The Following Standards 0

Flame Spread Index ASTM E162Smoke Density (Generation) ASTM E662Toxic Gas Generation Bombardier SMP-800CJacket Material is U.L. 94 CertifiedConduit is U.L. 360 Listed

Nec Articles 0

Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors

Specifications Approx Weight Per 100 Ft

29 lbs | 13.15 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

6702-60-00 | 88114 | LSZH | ZHLA-11

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Bend Radius

3.5 in | 88.9 mm

Specifications Inside Diameter

0.622 to 0.642 in | 15.799 to 16.307 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant | Zero Halogen

Specifications Jacket Material

Thermoplastic Polyurethane (TPU)

Specifications Length

1000 ft | 304.8 m

Specifications Note

Colors are available upon request.Test data results obtained from an independent test laboratory. Consult factory for additional details.

Specifications Outside Diameter

0.822 to 0.840 in | 20.879 to 21.336 mm

Specifications Packaging

Standard Reels

Specifications Type

ZHUA

SEALTITE Type ZHUA LFMC - Liquid Tight Flexible Metal Conduit
