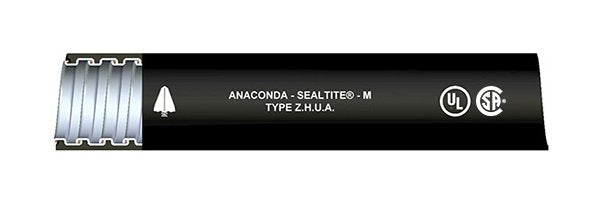

The Sealtite Type ZHUA LFMC offers a reliable solution for flexible liquid-tight raceway wiring needs. With a durable galvanized steel core and a zero halogen, low smoke, and flame retardant TPU jacket, this conduit ensures safety and performance. It is UL Listed, IP 67 rated, and suitable for hazardous locations, direct burial, and concrete installations. With a wide temperature range and industry certifications, the Sealtite Type ZHUA LFMC is a versatile choice that meets stringent standards for government and institutional procurements.

Product Specifications

Application 0

For Restricted or Self-Contained Ventilation AreasTemperature ranges -40°F to + 176°F (-40°C to +80°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 3/8" through 1-1/4" if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8" and 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Article 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of sizes from 3/8" through 4". Approved for direct burial and in concrete trade sizes 3/8" through 4". Complies with UL Standard 360 File No. E18917; and NEC Article 350.

Meets Or Exceeds The Following Standards 0

Flame Spread Index ASTM E162Smoke Density (Generation) ASTM E662Toxic Gas Generation Bombardier SMP-800CJacket Material is U.L. 94 CertifiedConduit is U.L. 360 Listed

Nec Articles 0

Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors

Specifications Approx Weight Per 100 Ft

25 lbs | 11.34 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

88103 | LSZH | ZHLA-10

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Bend Radius

3.0 in | 76.2 mm

Specifications Inside Diameter

0.484 to 0.504 in | 12.294 to 12.802 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant | Zero Halogen

Specifications Jacket Material

Thermoplastic Polyurethane (TPU)

Specifications Length

500 ft | 152.4 m

Specifications Note

Colors are available upon request.Test data results obtained from an independent test laboratory. Consult factory for additional details.

Specifications Outside Diameter

0.690 to 0.710 in | 17.526 to 18.034 mm

Specifications Packaging

Small Reels

Specifications Type

ZHUA
