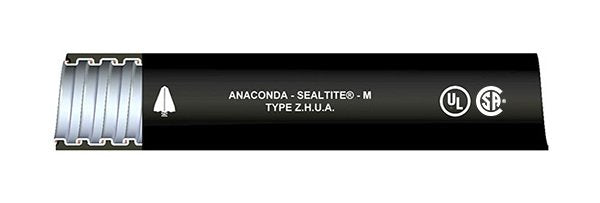

Sealtite Type ZHUA Low Smoke Zero Halogen Flexible Metal Conduit

Name: Sealtite Type ZHUA Low Smoke Zero Halogen Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-eecc0d
Price: 89.99 USD
Availability: OutOfStock

SKU:LIQ-eecc0d

Sealtite Type ZHUA: Liquid-tight, flexible, metal conduit with zero halogen, low smoke, and flame spread features.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

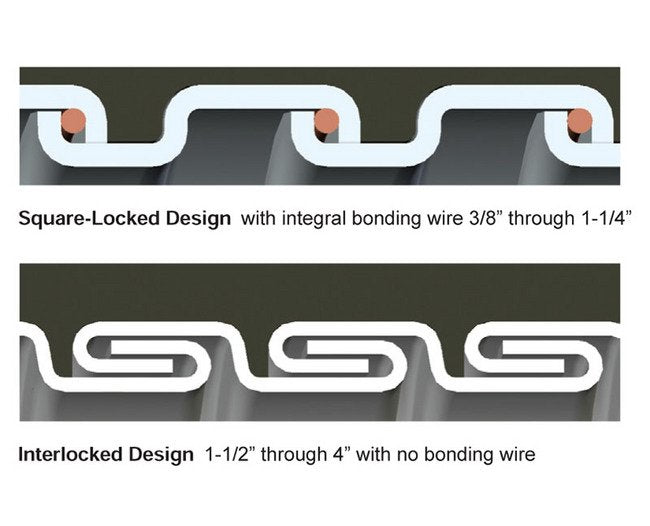

The Sealtite Type ZHUA is a high-quality liquid-tight flexible metal conduit designed for wiring applications. Constructed with interlocked zinc-galvanized steel core and a flame-retardant, low-smoke, and zero-halogen TPU jacket, it provides optimal protection. UL Listed and IP 67 rated, this conduit is suitable for a wide range of installations, from exposed to concealed locations. With industry certifications, including flame spread and smoke density standards, this conduit ensures safety and reliability in various environments.

Product Specifications

Application 0

For Restricted or Self-Contained Ventilation AreasTemperature ranges -40°F to + 176°F (-40°C to +80°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 3/8" through 1-1/4" if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8" and 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Article 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of sizes from 3/8" through 4". Approved for direct burial and in concrete trade sizes 3/8" through 4". Complies with UL Standard 360 File No. E18917; and NEC Article 350.

Meets Or Exceeds The Following Standards 0

Flame Spread Index ASTM E162Smoke Density (Generation) ASTM E662Toxic Gas Generation Bombardier SMP-800CJacket Material is U.L. 94 CertifiedConduit is U.L. 360 Listed

Nec Articles 0

Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors

Specifications Approx Weight Per 100 Ft

314 lbs | 142.43 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

6710-22-00 | 88188 | LSZH | ZHLA-350

Specifications Electrical Trade Size

3-1/2 in | 91 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Bend Radius

16 in | 406.4 mm

Specifications Inside Diameter

3.500 to 3.540 in | 88.900 to 89.916 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant | Zero Halogen

Specifications Jacket Material

Thermoplastic Polyurethane (TPU)

Specifications Length

25 ft | 7.62 m

Specifications Note

Colors are available upon request.Test data results obtained from an independent test laboratory. Consult factory for additional details.

Specifications Outside Diameter

3.960 to 4.000 in | 100.584 to 101.600 mm

Specifications Packaging

Standard Carton

Specifications Type

ZHUA
