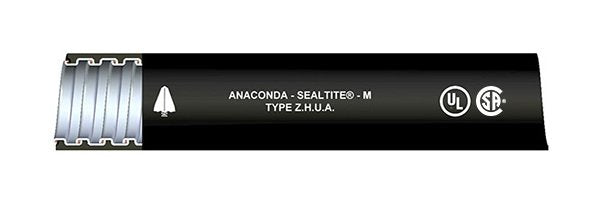

Sealtite ZHUA LFMC - Liquid-Tight Flexible Metal Conduit
Sealtite ZHUA LFMC - Liquid-Tight Flexible Metal Conduit
SKU:LIQ-d41c7d
Premium Sealtite ZHUA LFMC conduit - Flexible, safe, and UL Listed.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Sealtite ZHUA LFMC - Liquid-Tight Flexible Metal Conduit
$239.99
Quantity: 1
Claim Your Seller Account
Sealtite ZHUA LFMC - Liquid-Tight Flexible Metal Conduit
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

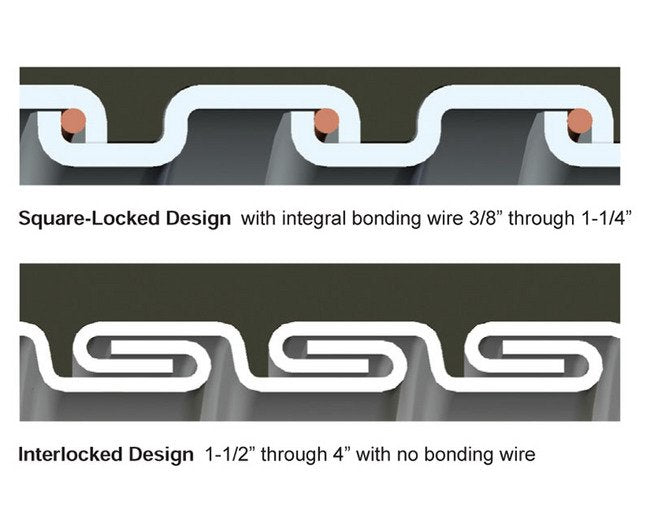

The Sealtite ZHUA LFMC is a premier solution for flexible, liquid-tight wiring raceways. Featuring a Zero Halogen jacket with integral bonding wire, this conduit is constructed of hot-dipped zinc galvanized steel core, ensuring durability and safety. It is UL Listed, IP 67 rated, and meets strict industry standards, including flame spread, smoke density, and toxic gas generation requirements. Approved for hazardous locations and direct burial, this conduit offers reliable performance in a wide range of applications.
Product Specifications
Application 0
For Restricted or Self-Contained Ventilation AreasTemperature ranges -40°F to + 176°F (-40°C to +80°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 3/8" through 1-1/4" if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8" and 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Article 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of sizes from 3/8" through 4". Approved for direct burial and in concrete trade sizes 3/8" through 4". Complies with UL Standard 360 File No. E18917; and NEC Article 350.
Meets Or Exceeds The Following Standards 0
Flame Spread Index ASTM E162Smoke Density (Generation) ASTM E662Toxic Gas Generation Bombardier SMP-800CJacket Material is U.L. 94 CertifiedConduit is U.L. 360 Listed
Nec Articles 0
Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors
Specifications Approx Weight Per 100 Ft
100 lbs | 45.36 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
6705-40-00 | 88144 | LSZH | ZHLA-14
Specifications Electrical Trade Size
1-1/4 in | 35 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Bend Radius
7.0 in | 177.8 mm
Specifications Inside Diameter
1.380 to 1.410 in | 35.052 to 35.814 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant | Zero Halogen
Specifications Jacket Material
Thermoplastic Polyurethane (TPU)
Specifications Length
200 ft | 60.96 m
Specifications Note
Colors are available upon request.Test data results obtained from an independent test laboratory. Consult factory for additional details.
Specifications Outside Diameter
1.630 to 1.660 in | 41.402 to 42.164 mm
Specifications Packaging
Small Reels
Specifications Type
ZHUA
