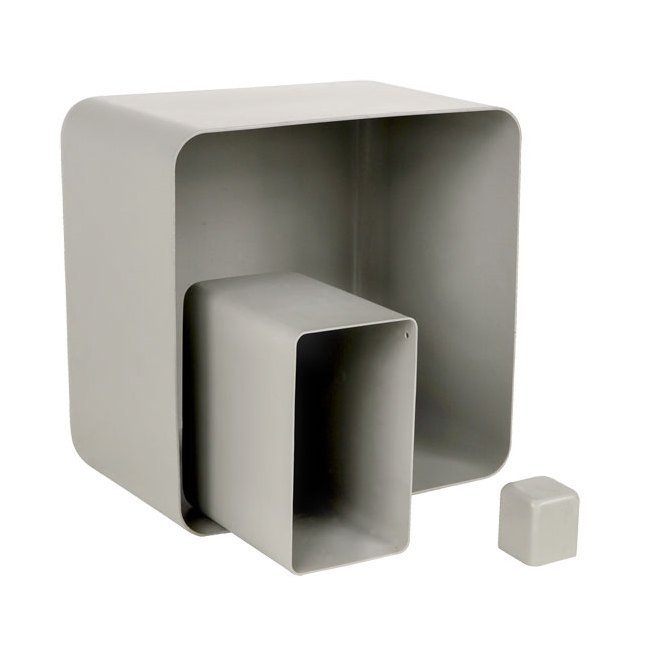

Seamless Deep Drawn Aluminum Cans
Seamless Deep Drawn Aluminum Cans
SKU:DRA-b24f39
Premium seamless aluminum cans for versatile applications. Customizable with quick turnaround.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Seamless Deep Drawn Aluminum Cans
$29.99
Quantity: 1
Claim Your Seller Account
Seamless Deep Drawn Aluminum Cans
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Seamless Deep Drawn Aluminum Cans offer unmatched quality and durability for a variety of applications. Precision-formed using aerospace aluminum alloys, these cans are seamless and customizable with various finishes, markings, and fittings. With quick turnaround times and in-house modification services, they are ideal for aeronautics, military, electronics, and more.
Product Specifications
Accessories Accessories
Blowers | Brackets | Card Edges | Covers | Fans | Feet | Flanges | Gaskets | Handles | Hinges | Latches | Mounting Box | Nameplates | Panels
Additional Information Additional Information
ZERO provides value added services and operations. We understand and provide continuous delivery of products to meet your expectations in Kanban and long term agreements.ZERO has no minimum order quantity required. We can draw exactly what you need! Price breaks are available at 10, 25, 50, 100, and 250+ piece quantities.
Benefits Benefits
The benefits start with a single sheet of metal. ZERO uses only the highest quality aerospace aluminum alloys. Each piece is precision sheared and formed using the ZERO method of deep drawing, then trimmed and tempered to your specification.
Benefits Benefits Of Zeros Deep Drawing
Created from a single sheet of metalCans are 100% seamlessLarge quantities of deep drawn products can be easily manufacturedUniform material thickness can be achievedOver 30,000 ToolsNo tooling or set up cost on stock sizesFree trimming to height specificationLow tooling cost for custom jobsIn-house modification services (to adapt a standard can to special requirements)Quick turn-around, including next-day shipping if required5 axis laser capabilities for precision modifications and prototyping
Custom Options Alloy Custom
Many materials, other than aluminum, can be deep drawn. ZERO has the ability to draw most materials on special order.
Custom Options Assembly
Assemble Components | Install Rivets, Screws and Washers | Mount Hardware
Custom Options Finish Custom
Black Anodize | Clear Anodize | Custom Anodize | Custom Powder-Coat Paint | Custom Wet Paint | FED-Std-595, Pantone and RAL | Gold Anodize | Gold Chemical Film | Standards Powder-Coat Paint | Standards Wet Paint | Yellow Chemical Film
Custom Options Marking Custom
Bar Code | Emboss | Etch and Fill | Hot Stamp | Label | Silk-Screen | Stencil
Custom Options Modified Or Custom Deep Drawn Parts
ZERO has a completely equipped design and manufacturing facility to perform any secondary operation or modification to standard boxes and covers. We also have an experienced staff of tool and die makers to satisfy your custom or special deep drawn requirements.
Custom Options Operations
Louvering | Piercing | Ramping | Tapping | Welding
Custom Options Surface Custom
Countersink Holes | Custom Shapes | Obround Laser Cut Holes | Round Laser Cut Holes | Square/Rectangle Laser Cut Holes
Custom Options Testing
Die Penetrant | Drop Test | Pull Test | Watertight Integrity
Custom Options Tolerances Custom
Closer tolerances, on trim heights can be provided on special order at additional cost. Standard edge to feature dimensions will be held to ±0.030.Feature to feature will be held ±0.010.
Options Certifications
First Article Report | Material (Chemical/Physical) | Material Source Inspection
Options Finish
Anodize | Chemical Film | Paint | Powder-Coat | Standard (None)
Options Heat Treating
Standard heat treating is Fast and Slow Cycle Hydrogen Annealing. ZERO can Heat Treat Alloy 6061-0 to a T-4 or T-6 condition in conjunction with the drawing process.
Options Marking
Label | Part Number | Rubber Stamp
Options Nutplate Pattern Option
AA, BB, CC, DD, EE, FF, GG, HH, JJ
Options Packaging
Bag and Tag | Bag Only | Egg Crate | Other: Specify
Options Surface
Deburr | Sandblast | Sand-o-Flex (Jitterbug) | Sleeve Cut | Standard (None)
Specifications Alloy
6061-0 | 6061-T4 Heat Treat | 6061-T6 Heat Treat
Specifications Blank Gauge Thickness Before Draw
0.063 in
Specifications Inside Corner Radius R1
0.16 in
Specifications Inside Corner Radius R2
0.16 in
Specifications Made In
USA
Specifications Matching Part
ZT56-84B-CF | ZT56-84B-COG
Specifications Minimum Order
1
Specifications Other
Specify Custom Options Selected i.e. Paint, Marking Location, etc.
Specifications Outside Height Maximum
3.500 in
Specifications Outside Height Minimum
0.62 in
Specifications Outside Length
5.25 in
Specifications Outside Width
3.50 in
Specifications Standard Availability
5 Days
Tolerances Maximum Bow Tolerances For 6 To 12 Inch Basic Size
0.06 in
Tolerances Maximum Bow Tolerances For Over 12 Inch Basic Size
0.12 in
Tolerances Maximum Bow Tolerances For Up To 6 Inch Basic Size
0.03 in
Tolerances Trim Height
Untrimmed
Tolerances Trim Height Tolerance
0.06 in
Tolerances Width
6 to 24 in
Tolerances Width Tolerance
0.03 in
