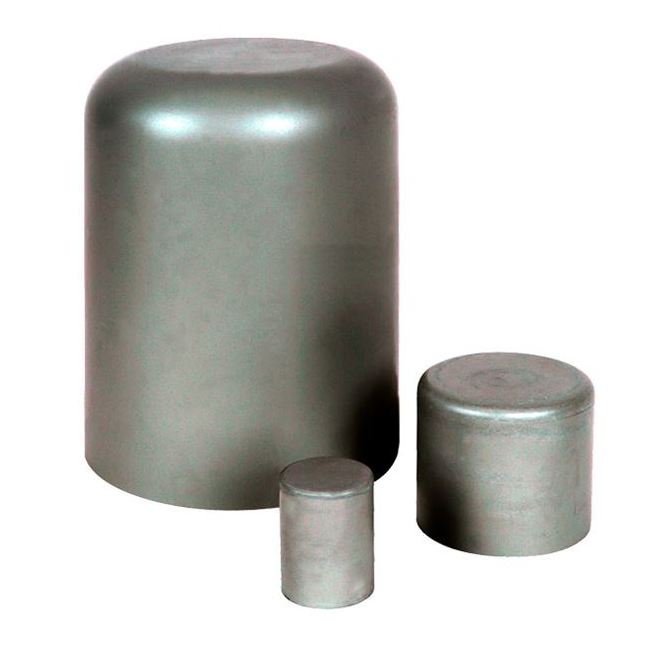

Seamless Deep Drawn Round Cans
Seamless Deep Drawn Round Cans
SKU:DRA-3164fe
High-quality Seamless Deep Drawn Cans for aeronautics, broadcast, military, and hospitality industries. Customizable and cost-effective.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Seamless Deep Drawn Round Cans
$29.99
Quantity: 1
Claim Your Seller Account
Seamless Deep Drawn Round Cans
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Seamless Deep Drawn Round Cans offered by ZERO are unparalleled for their seamless construction using high-quality aluminum alloys. Perfect for aeronautics, broadcast, military, and hospitality industries, these cans can be customized to meet specific needs with various finishes and markings. Enjoy benefits like precise trimming, quick turnaround, and no minimum order quantity. With over 30,000 tools available, adaptability to special requirements, and in-house modification services, these cans cater to diverse needs while ensuring uniform material thickness and low tooling costs.
Product Specifications
Benefits Additional Information
ZERO provides value added services and operations. We understand and provide continuous delivery of products to meet your expectations in Kanban and long term agreements.ZERO has no minimum order quantity required. We can draw exactly what you need! Price breaks are available at 10, 25, 50, 100, and 250+ piece quantities.
Benefits Benefits
The benefits start with a single sheet of metal. ZERO uses only the highest quality aerospace aluminum alloys. Each piece is precision sheared and formed using the ZERO method of deep drawing, then trimmed and tempered to your specification.
Benefits Benefits Of Zeros Deep Drawing
Created from a single sheet of metalCans are 100% seamlessLarge quantities of deep drawn products can be easily manufacturedUniform material thickness can be achievedOver 30,000 ToolsNo tooling or set up cost on stock sizesFree trimming to height specificationLow tooling cost for custom jobsIn-house modification services (to adapt a standard can to special requirements)Quick turn-around, including next-day shipping if required5 axis laser capabilities for precision modifications and prototyping
Custom Options Accessories
Blowers | Brackets | Card Edges | Covers | Fans | Feet | Flanges | Gaskets | Handles | Hinges | Latches | Mounting Box | Nameplates | Panels
Custom Options Alloy Custom
Many materials, other than aluminum, can be deep drawn. ZERO has the ability to draw most materials on special order.
Custom Options Assembly
Assemble Components | Install Rivets, Screws and Washers | Mount Hardware
Custom Options Finish Custom
Black Anodize | Clear Anodize | Custom Anodize | Custom Powder-Coat Paint | Custom Wet Paint | FED-Std-595, Pantone and RAL | Gold Anodize | Gold Chemical Film | Standards Powder-Coat Paint | Standards Wet Paint | Yellow Chemical Film
Custom Options Marking Custom
Bar Code | Emboss | Etch and Fill | Hot Stamp | Label | Silk-Screen | Stencil
Custom Options Modified Or Custom Deep Drawn Parts
ZERO has a completely equipped design and manufacturing facility to perform any secondary operation or modification to standard boxes and covers. We also have an experienced staff of tool and die makers to satisfy your custom or special deep drawn requirements.
Custom Options Operations
Louvering | Piercing | Ramping | Tapping | Welding
Custom Options Surface Custom
Countersink Holes | Custom Shapes | Obround Laser Cut Holes | Round Laser Cut Holes | Square/Rectangle Laser Cut Holes
Custom Options Testing
Die Penetrant | Drop Test | Pull Test | Watertight Integrity
Custom Options Tolerances Custom
Closer tolerances, on trim heights can be provided on special order at additional cost. Standard edge to feature dimensions will be held to ±0.030.Feature to feature will be held ±0.010.
Options Certifications
First Article Report | Material (Chemical/Physical) | Material Source Inspection
Options Finish
Anodize | Chemical Film | Paint Coat | Powder-Coat
Options Heat Treating
Standard heat treating is Fast and Slow Cycle Hydrogen Annealing. ZERO can Heat Treat Alloy 6061-0 to a T-4 or T-6 condition in conjunction with the drawing process.
Options Marking
Part Number Label | Rubber Stamp
Options Nutplate Pattern Option
AA, BB, CC, DD, EE, FF, GG, HH, JJ
Options Packaging
Bag and Tag | Bag Only | Egg Crate
Options Surface
Bead Pattern (if Available) | Deburr | Sandblast | Sand-o-Flex (Jitterbug) | Sleeve Cut
Specifications Alloy
6061-0
Specifications Blank Gauge Thickness Before Draw
0.050 in
Specifications Made In
USA
Specifications Matching Part
ZTR49A-CF
Specifications Minimum Order
1
Specifications Outside Diameter
3.06 in
Specifications Outside Height Maximum
3.380 in
Specifications Outside Height Minimum
0.16 in
Specifications Radius Type
Uniform
Specifications Round Special
No
Specifications Round Standard Bottom Radius R1
0.09
Specifications Standard Availability
5 Days
Specifications Stock Status
In-Stock
Tolerances Maximum Bow Tolerances For 6 To 12 Inch Basic Size
0.06 in
Tolerances Maximum Bow Tolerances For Over 12 Inch Basic Size
0.12 in
Tolerances Maximum Bow Tolerances For Up To 6 Inch Basic Size
0.03 in
Tolerances Trim Height
Over 24 in
Tolerances Trim Height Tolerance
0.06 in
Tolerances Width
6 to 24 in
Tolerances Width Tolerance
0.03 in
