SEL120 2-Stage Planetary Reducer Gearbox

SEL120 2-Stage Planetary Reducer Gearbox

PLA-21a920

Experience precision and durability with the SEL120 2-Stage Planetary Reducer Gearbox from Servobox Series. High torque, stability, and efficiency for industrial applications.

$1,599.99
$1,599.99
Sale

Initiate Order

SEL120 2-Stage Planetary Reducer Gearbox

SEL120 2-Stage Planetary Reducer Gearbox

$1,599.99

Quantity: 1

Claim Your Seller Account

SEL120 2-Stage Planetary Reducer Gearbox

SEL120 2-Stage Planetary Reducer Gearbox

$1,599.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Servobox Series SEL120 2-Stage Planetary Reducer Gearbox offers high torque, stability, and speed reduction ratio. With a standard output bearing and P2 backlash class, this gearbox ensures precision and durability in industrial applications. Pelonis Technologies delivers a robust solution with high efficiency and low backlash, making it ideal for demanding environments. The gearbox's modular design allows for versatility and customization, meeting the needs of both consumer and institutional buyers.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

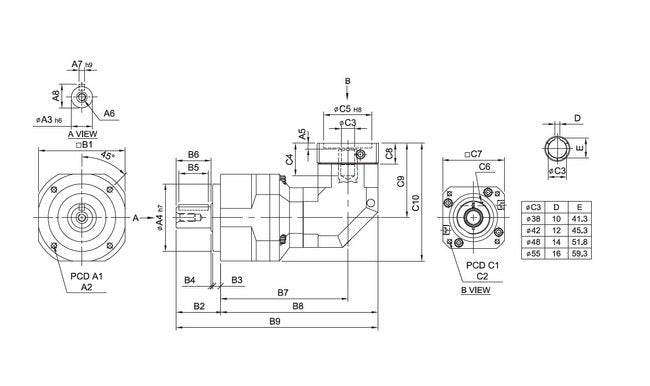

Product Specifications

Dimensions Dimension A1
110 mm
Dimensions Dimension A2
M8 x P1.25
Dimensions Dimension A3
32 mm
Dimensions Dimension A4
90 mm
Dimensions Dimension A5
9 mm | 23.5 mm
Dimensions Dimension A6
M10 x P1.5
Dimensions Dimension A7
10 mm
Dimensions Dimension A8
35 mm
Dimensions Dimension B1
120 mm
Dimensions Dimension B2
65 mm
Dimensions Dimension B3
12 mm
Dimensions Dimension B4
3 mm
Dimensions Dimension B5
40 mm
Dimensions Dimension B6
50 mm
Dimensions Dimension B7
181.6 mm
Dimensions Dimension B8
226.6 mm
Dimensions Dimension B9
291.6 mm
Dimensions Dimension C1
90 mm | 110 mm | 115 mm | 145 mm
Dimensions Dimension C10
175.3 mm | 189.8 mm
Dimensions Dimension C2
M5 | M6 | M8
Dimensions Dimension C3
19 mm | 22 mm | 24 mm
Dimensions Dimension C4
53 mm | 58 mm | 67.5 mm
Dimensions Dimension C5
70 mm | 80 mm | 95 mm | 110 mm
Dimensions Dimension C6
M6 x P1.0
Dimensions Dimension C7
92 mm | 110 mm | 130 mm
Dimensions Dimension C8
26.5 mm | 41 mm
Dimensions Dimension C9
115.3 mm | 129.8 mm
Features Features
High TorqueHigher output torque is compared to spur gear planetary gear reducers.High StabilityEmploys high tensile strength alloy steel. Gear hardening is made for the entire gear which extends gear service life and maintains high accuracy after a long period of operation.High Speed Reduction RatioThe gear reducer is a modular design. The planetary gear box can be connected. The speed reduction ratio can reach over 1/10000.
Specifications Backlash
≤ 12 arc·min
Specifications Backlash Class
P2
Specifications Efficiency
≥ 92 %
Specifications Lubrication
Synthetic Grease
Specifications Mass Moments Of Inertia
1.88 kg·cm²
Specifications Maximum Acceleration Torque T2b
1.8 Times of Rated Output Torque
Specifications Maximum Axial Force F2ab
3400 N
Specifications Maximum Input Speed N1b
5000 rpm
Specifications Maximum Output Torque Emergency Stop Torque T2not
3 Times of Rated Output Torque
Specifications Maximum Radial Force F2rb
6800 N
Specifications Model
120
