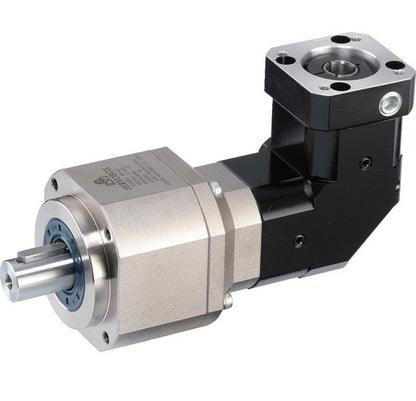

• SEL142 2-Stage Planetary Reducer Gearbox - Image 1
  • SEL142 2-Stage Planetary Reducer Gearbox - Image 2
1 2
Pelonis Technologies, Inc. →

SEL142 2-Stage Planetary Reducer Gearbox

SEL142 2-Stage Planetary Reducer Gearbox

PLA-ae0026

High-torque 2-stage gearbox with solid output shaft bearing and precise P1 backlash, ensuring reliability and efficiency for demanding applications.

$1,299.99
$1,299.99
Sale

Initiate Order

SEL142 2-Stage Planetary Reducer Gearbox

SEL142 2-Stage Planetary Reducer Gearbox

$1,299.99

Quantity: 1

Claim Your Seller Account

SEL142 2-Stage Planetary Reducer Gearbox

SEL142 2-Stage Planetary Reducer Gearbox

$1,299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SEL142 2-Stage Planetary Reducer Gearbox from Pelonis Technologies is engineered for high torque applications, boasting a solid output shaft bearing and P1 backlash class for utmost precision. With a maximum output torque of 3 times the nominal output torque, this gearbox ensures reliable performance under demanding conditions. Its high stability, thanks to high tensile strength alloy steel construction, guarantees extended service life and maintained accuracy over time. Designed for efficiency and speed reduction, this modular gear reducer meets the rigorous standards of institutional and government procurement.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

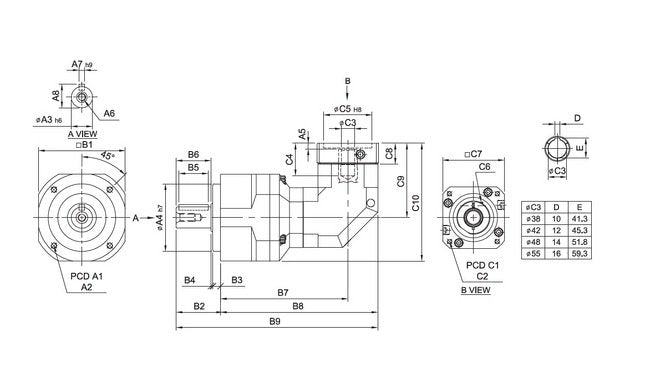

Dimensions Dimension A1
140 mm
Dimensions Dimension A2
M10 x P1.5
Dimensions Dimension A3
40 mm
Dimensions Dimension A4
120 mm
Dimensions Dimension A5
10 mm | 20 mm
Dimensions Dimension A6
M12 x P1.75
Dimensions Dimension A7
12 mm
Dimensions Dimension A8
43 mm
Dimensions Dimension B1
142 mm
Dimensions Dimension B2
92 mm
Dimensions Dimension B3
15 mm
Dimensions Dimension B4
3 mm
Dimensions Dimension B5
65 mm
Dimensions Dimension B6
74 mm
Dimensions Dimension B7
214.5 mm
Dimensions Dimension B8
274.5 mm
Dimensions Dimension B9
366.5 mm
Dimensions Dimension C1
115 mm | 145 mm | 165 mm
Dimensions Dimension C10
212 mm | 222 mm
Dimensions Dimension C2
M6 | M8 | M10
Dimensions Dimension C3
24 mm | 28 mm | 32 mm
Dimensions Dimension C4
67 mm | 77 mm
Dimensions Dimension C5
95 mm | 110 mm | 130 mm
Dimensions Dimension C6
M8 x P1.25
Dimensions Dimension C7
122 mm | 130 mm | 150 mm
Dimensions Dimension C8
35.5 mm | 45.5 mm
Dimensions Dimension C9
141 mm | 151 mm
Features Features
High TorqueHigher output torque is compared to spur gear planetary gear reducers.High StabilityEmploys high tensile strength alloy steel. Gear hardening is made for the entire gear which extends gear service life and maintains high accuracy after a long period of operation.High Speed Reduction RatioThe gear reducer is a modular design. The planetary gear box can be connected. The speed reduction ratio can reach over 1/10000.
Specifications Backlash
≤ 9 arc·min
Specifications Backlash Class
P1
Specifications Efficiency
≥ 92 %
Specifications Lubrication
Synthetic Grease
Specifications Mass Moments Of Inertia
6.85 kg·cm²
Specifications Maximum Acceleration Torque T2b
1.8 Times of Rated Output Torque
Specifications Maximum Axial Force F2ab
4650 N
Specifications Maximum Input Speed N1b
5000 rpm
Specifications Maximum Output Torque Emergency Stop Torque T2not
3 Times of Rated Output Torque
Specifications Maximum Radial Force F2rb
9300 N
Specifications Model
142
