Self-Adjusting Miniature Compression Latch - 16/27/48
Self-Adjusting Miniature Compression Latch - 16/27/48
SKU:LOC-137721
Self-Adjusting Miniature Compression Latch - Secure tool locking with versatile sizing and durable construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Self-Adjusting Miniature Compression Latch - 16/27/48
$29.99
Quantity: 1
Claim Your Seller Account
Self-Adjusting Miniature Compression Latch - 16/27/48
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

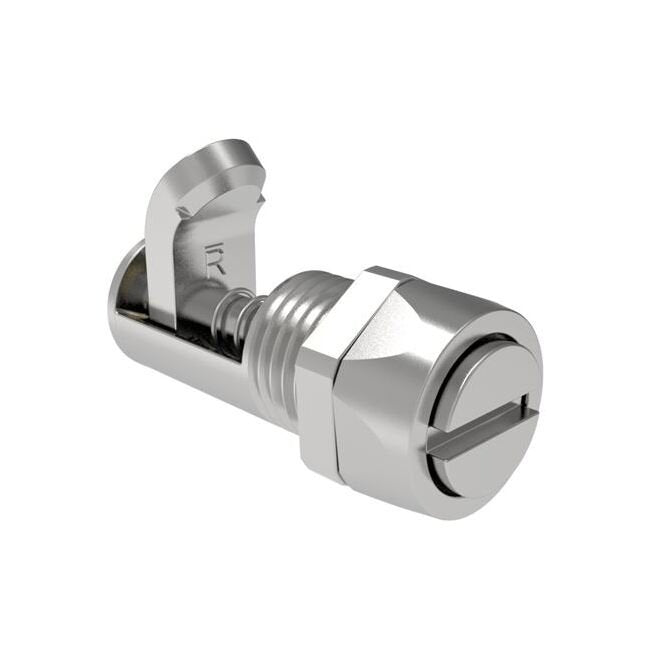

The Self-Adjusting Miniature Compression Latch 16/27/48 is a versatile solution designed for secure tool locking with a Slotted Recess head style. Crafted from durable Steel with Zinc Plating and Bright Chromate finish, this latch accommodates panels ranging from 1.5mm to 4.8mm in thickness and provides a comfortable grip of 0.8mm to 7.1mm. Its standard profile and Type B rotation mechanism ensure ease of operation, making it ideal for a wide range of applications. Performance Data and detailed Product Specifications are available for reference, ensuring reliability and compliance with industry standards.
Product Specifications
Specifications Access Restriction
Tool
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Finish
Zinc Plate, Bright chromate
Specifications Grip Maximum
7.1
Specifications Grip Minimum
0.8
Specifications Head Style
Slotted Recess
Specifications Keywords
Compression Latch
Specifications Material
Steel
Specifications Max Outer Panel Thickness
4.8
Specifications Min Outer Panel Thickness
0
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Profile
Standard
Specifications Pullup
6.3
Specifications Rotation
Type B - Turn Counter-Clockwise to Latch
Specifications Short Description
Compression Latch, Self-Adjusting, Miniature Size, Tool Locking, Slotted Recess, 1.5-4.8mm Panel, 0.8-7.1mm Grip, Steel, Zinc Plated, Bright Chromate
Specifications Size Series
Miniature Size
Specifications Trade Drawing
Trade Drawing
