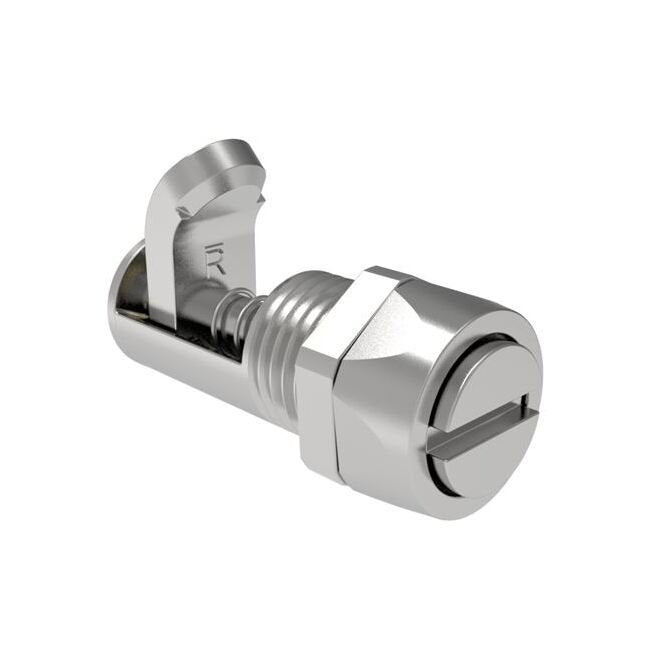

Self-Adjusting Miniature Compression Latch - 16/27/48 Series
Self-Adjusting Miniature Compression Latch - 16/27/48 Series
SKU:LOC-a7b47f
Secure and durable Self-Adjusting Miniature Compression Latch with tool locking, ideal for panel closures. Compliant with UL FTTA2/FTTA8 Type 1.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Self-Adjusting Miniature Compression Latch - 16/27/48 Series
$24.99
Quantity: 1
Claim Your Seller Account
Self-Adjusting Miniature Compression Latch - 16/27/48 Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Self-Adjusting Miniature Compression Latch from the 16/27/48 Series offers secure tool locking with a slotted recess design. Crafted from steel and zinc plated with bright chromate finish, it accommodates panels ranging from 1.5mm to 4.8mm and provides a firm grip of 0.8mm to 7.1mm. This latch ensures smooth operation and durability, making it ideal for various applications that demand reliable panel closure and security. Compliant with UL FTTA2/FTTA8 Type 1 standards, it guarantees quality and performance in every use.
Product Specifications
Specifications Access Restriction
Tool
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1
Specifications Finish
Zinc Plate, Bright chromate
Specifications Grip Maximum
7.1
Specifications Grip Minimum
0.8
Specifications Head Style
Slotted Recess
Specifications Keywords
Compression Latch
Specifications Material
Steel
Specifications Max Outer Panel Thickness
4.8
Specifications Min Outer Panel Thickness
0
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Profile
Standard
Specifications Pullup
6.3
Specifications Rotation
Type A - Turn Clockwise to Latch
Specifications Short Description
Compression Latch, Self-Adjusting, Miniature Size, Tool Locking, Slotted Recess, 1.5-4.8mm Panel, 0.8-7.1mm Grip, Steel, Zinc Plated, Bright Chromate
Specifications Size Series
Miniature Size
Specifications Trade Drawing
Trade Drawing
