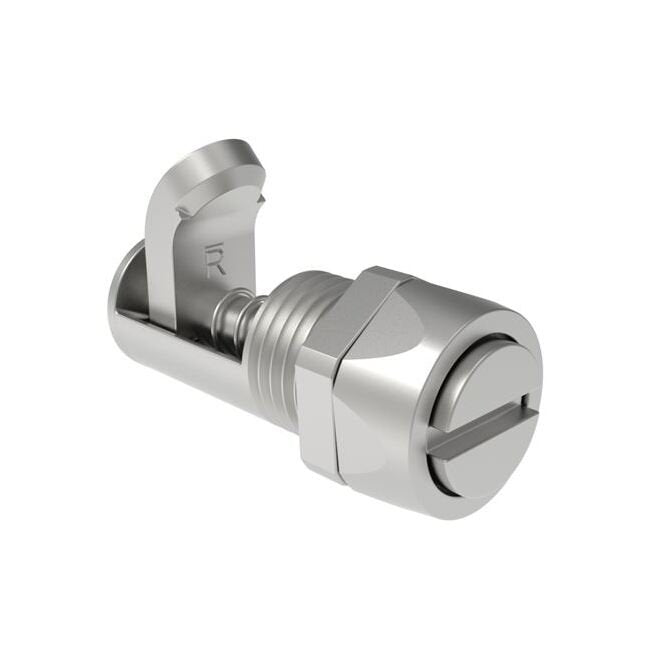

Self-Adjusting Stainless Steel Compression Latch - 16/27/48 Single-Hole Mount
Self-Adjusting Stainless Steel Compression Latch - 16/27/48 Single-Hole Mount
SKU:LOC-78f7b9
Secure and durable self-adjusting compression latch for enhanced safety and accessibility. Stainless steel construction, tool locking, and UL FTTA2/FTTA8 Type 1 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Self-Adjusting Stainless Steel Compression Latch - 16/27/48 Single-Hole Mount
$24.99
Quantity: 1
Claim Your Seller Account
Self-Adjusting Stainless Steel Compression Latch - 16/27/48 Single-Hole Mount
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance security and accessibility with the Self-Adjusting Stainless Steel Compression Latch. This miniature-sized latch features tool locking, a slotted recess head style, and is designed for 1.5-4.8mm panel thicknesses with a 0.8-7.1mm grip range. Crafted from durable stainless steel, passivated and finished in silver, this latch ensures robust performance. With compliance to UL FTTA2/FTTA8 Type 1 standards, it offers reliability and precision for various applications. Partner with Southco®, a trusted name for quality hardware solutions.
Product Specifications
Specifications Access Restriction
Tool
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1
Specifications Grip Maximum
7.1
Specifications Grip Minimum
0.8
Specifications Head Style
Slotted Recess
Specifications Keywords
Compression Latch
Specifications Material
Stainless Steel
Specifications Max Outer Panel Thickness
4.8
Specifications Min Outer Panel Thickness
0
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Profile
Standard
Specifications Pullup
6.3
Specifications Rotation
Type A - Turn Clockwise to Latch
Specifications Short Description
Compression Latch, Self-Adjusting, Miniature Size, Tool Locking, Slotted Recess, 1.5-4.8mm Panel, 0.8-7.1mm Grip, Stainless steel, Passivated, Silver
Specifications Size Series
Miniature Size
Specifications Trade Drawing
Trade Drawing
