Securely mount panels with ease using the Self-Clinching Captive Panel Screw, Metric Type PF7M. Flush installation, high pushout resistance, and no special hole preparation needed.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Self-Clinching Captive Panel Screw, Metric Type PF7M, offers a secure mounting design with high pushout resistance. Designed to install flush on the back side of panels, this screw eliminates the need for special hole preparation. With a thread size of M4 x 0.7 and materials like carbon steel and stainless steel, it ensures durability and reliability. Compliant with ASME B1.13M standards, this screw is ideal for metal sheets that are HRB 60 or less in hardness.

Product Specifications

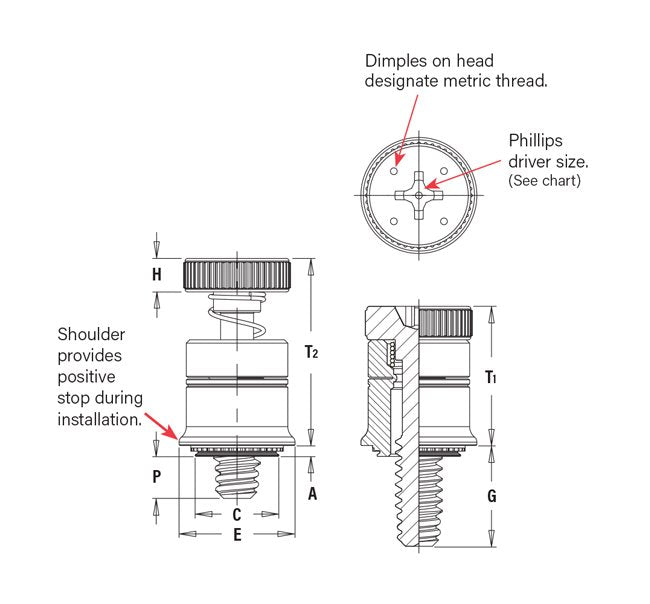

Specifications A Shank Max

0.92 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

7.9 mm

Specifications E 025

10.29 mm

Specifications Finish Retainer

Bright nickel over copper flash

Specifications Finish Screw

Bright nickel over copper flash

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale) / HB 107 or Less (Hardness Brinell)

Specifications G 064

6.10 mm

Specifications Hole Size In Sheet 008

7.92 mm

Specifications H 025

3.00 mm

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Heat-Treated Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

8.38 mm

Specifications Min Sheet Thickness

0.92 mm

Specifications P 064

0 mm

Specifications Screw Length Code

Specifications T1 Nom

10.92 mm

Specifications T2 Nom

16.00 mm

Specifications Thread Code

Specifications Thread Size

M4 x 0.7

Specifications Thread Specification

ASME B1.13M, 6g

Specifications Type

PF7M
