Self-Locating Weld Nuts - Metric WN WNS
Self-Locating Weld Nuts - Metric WN WNS
SKU:PEM-733090
PEM® Self-Locating Weld Nuts for thin metal sheets, ASME B1.13M compliant, corrosion-resistant stainless steel.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Self-Locating Weld Nuts - Metric WN WNS
$24.99
Quantity: 1
Claim Your Seller Account
Self-Locating Weld Nuts - Metric WN WNS
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Self-Locating Projection Weld Nuts, Metric Type WN and WNS, from PEM® ensure easy installation and provide robust load-bearing threads in thin metal sheets. Designed to enhance production efficiency by overcoming common weld nut challenges, these stainless steel weld nuts offer corrosion resistance and ease of installation. Compatible with various welding equipment, they meet ASME B1.13M thread specifications and are passivated to ASTM A380 standards, ensuring high-quality performance.
Ready to Grow Without Cash Flow Constraints?

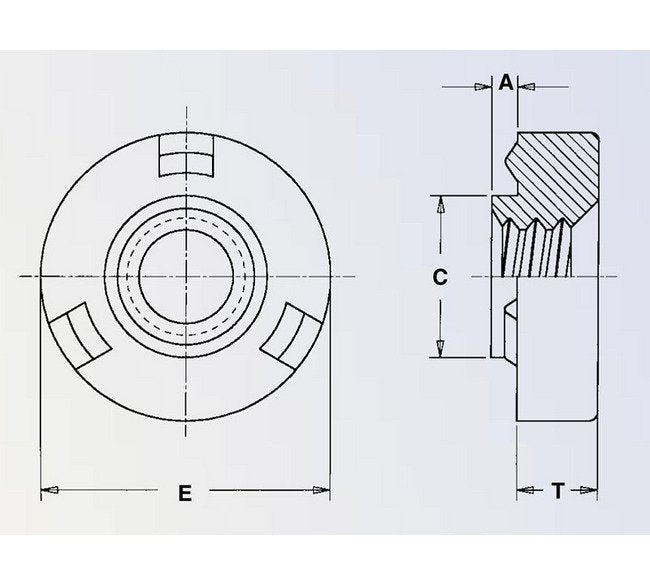

Product Specifications
Specifications A Shank Max
0.77 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
4.37 mm
Specifications E 025
7.82 mm
Specifications Hole Size In Sheet 01
4.40 mm
Specifications Min Dist Hole Cl To Edge
3.91 mm
Specifications Min Sheet Thickness
0.77 mm
Specifications Shank Code
0
Specifications Standard Finish
Passivated and/or tested per ASTM A380
Specifications Standard Material
300 Series Stainless Steel
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
6H per ASME B1.13M
Specifications Type
WNS
Specifications T 01
1.48 mm
