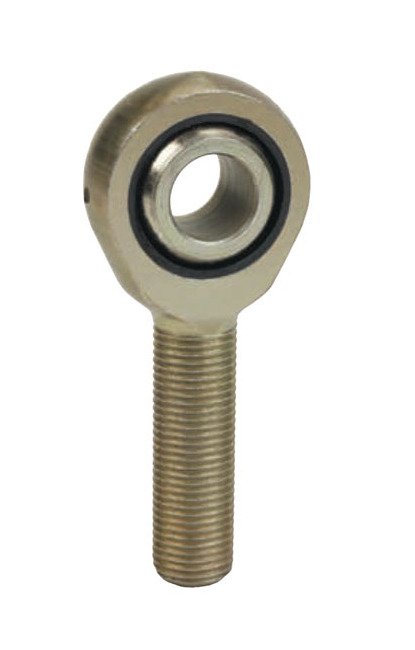

Self-Lubricating Nylon Rod End LH

Name: Self-Lubricating Nylon Rod End LH
Brand: Lexco Cable Manufacturing
SKU: PUS-2a53e3
Price: 24.99 USD
Availability: OutOfStock

SKU:PUS-2a53e3

High-performance Self-Lubricating Nylon Rod End LH designed for precise motion transfer and durability in diverse applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Self-Lubricating Nylon Rod End LH is specifically designed for demanding mechanical motion transfer applications in construction equipment, recreational vehicles, and more. Featuring a molded raceway made of self-lubricating reinforced nylon, this rod end ensures low friction, moisture-resistance, and excellent wear resistance. With a versatile temperature range of -30 Ã‚ÂºF to 220 Ã‚ÂºF (-34 Ã‚ÂºC to 104 Ã‚ÂºC) and the ability to control breakaway torque, this rod end offers high performance in various conditions. Compliant with SAE spec J1120, it can be customized to meet your specific assembly requirements, making it an ideal choice for industrial and institutional procurement needs.

Product Specifications

Applications 0

Numerous mechanical motion transfer devices/applications, including:Construction equipmentRecreational vehicles (ATV's, golf carts, etc.)Truck/off highway

Features 0

Nylon molded raceway delivers self-lubricating low friction and moisture-resistant performanceGood wear resistanceDesign allows for control of breakaway torque, adding to its application versatilityCan be used in a wide range of temperatures: -30 ÂºF - 220 ÂºF (-34 ÂºC - 104 ÂºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120

Material 0

Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate TreatedRace - Molded Self-Lubricating Reinforced Nylon

Specifications Additional Options

Studded Configuration

Specifications Ball Bore B 00020 00000

0.4375 "

Specifications Ball Diameter Ref

0.812 "

Specifications Ball Width W 0005

0.562 "

Specifications Centerline Length A 0015

2.125 "

Specifications Head Diameter D 0015

1.125 "

Specifications Housing Width H Ref

0.437 "

Specifications Note

This series is also available in a studded configuration. Specify by adding âSâ to suffix. Example: SPF8S

Specifications Temperature Range

-30 to 220 ÂºF | -34 to 104 ÂºC

Specifications Thread Length C 0060

1.312 "

Specifications Type

Male

Specifications Ultimate Radial Static Load Capacity

5350 lb

Specifications Unf 2

7/16-20

Specifications Weight

0.148 lb

Studded Dimensions L Ref

0.844 "

Studded Dimensions Min Thread Length S

0.937 "

Studded Dimensions P 0030

1.062 "

Studded Dimensions Rod End Bore Size

7/16 "

Studded Dimensions Thread Size N Unf 2a

7/16-20 "

CAGE

0T9L4

NAICS

326199

PSC

5975
