Our self-piercing rivets are remarkably strong and can be used to fasten both similar or dissimilar materials, such as aluminum, stainless steel, and steel - as well as a number of plastics and fibers. In addition, a self-piercing rivet can also be used to connect two or more material layers, and, therefore, can easily join together painted or coated parts. Self-piercing rivets are designed to pierce sheet metal or aluminum without pre-punching holes. Please contact sales engineering at sales@chicagorivet.com for a specific evaluation of your application. Minimum order quantity is 25,000 pieces. Materials include: carbon steel, stainless steel, and aluminum, depending on to review of application. Head shapes include: oval, flat, counter-sunk & truss A wide variety of finishes are available to provide corrosion resistance and cosmetic appearance to suit your requirements. This is a partial listing of our custom part capabilities. Please contact our engineering department to discuss your requirements, should they not be listed.Chicago Rivet's Self-Piercing Rivets allow riveting of sheet metal or aluminum without pre-punching holes. For an evaluation of your application, send sample materials to Chicago Rivet & Machine Co.

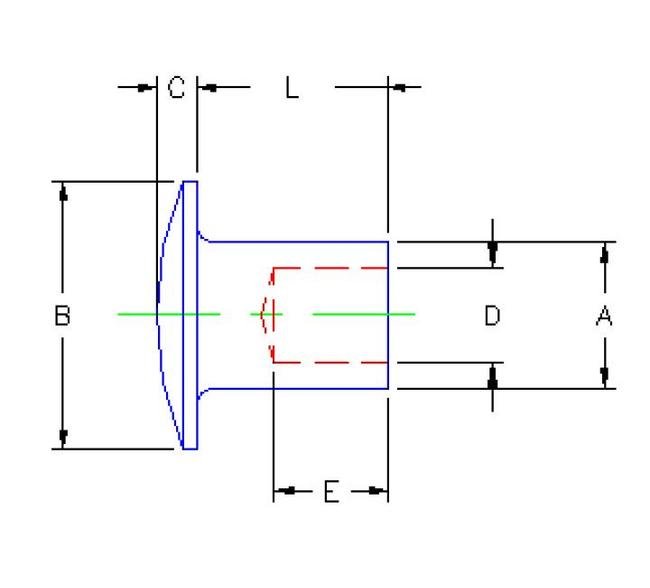

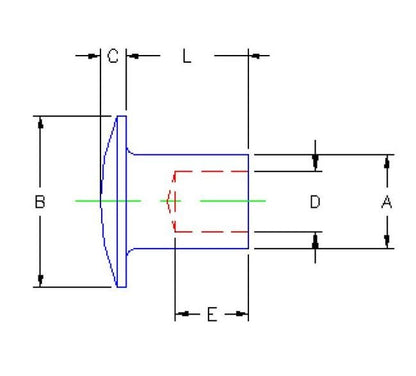

Product Specifications
Specifications A Body Diameter
.182 to .188 Inch
Specifications Body Diameter
3/16 Inch
Specifications B Head Diameter
.306 to .318 Inch
Specifications C Head Height
.073 to .083 Inch
Specifications D Straight Hole Diameter
.106 Inch
Specifications E Hole Depth
.187 Inch
