Self-Tapping Screw for Circuit Board Supports

Name: Self-Tapping Screw for Circuit Board Supports
Brand: All Electronics Hardware
SKU: 01C-767068
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-767068

Securely fasten circuit board supports with this self-tapping screw from the 10 Series. Easy to install by hand and ideal for limited spaces. RoHS compliant, Nylon 66 UL94V-2 material. ASTM D 4066, PA111 standards.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

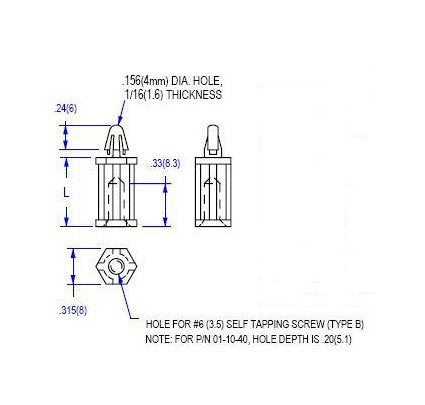

The Self-Tapping Screw for Circuit Board Supports from the 10 Series is designed for easy manual installation on chassis. Featuring a minimal protrusion, it is perfect for applications with limited space. The PC board mount end is releasable, ensuring flexibility in use. Made of Nylon 66 UL94V-2 material, this screw is robust and reliable, meeting ASTM D 4066 and PA111 standards. RoHS compliant and suitable for a temperature range of -40 to 185F (-40 to 85C), it offers secure fastening for circuit board supports.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Thickness

.063 (1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L

1.00 (25.4) inches (mm)

Specifications Material Code

UL94V-2

Self-Tapping Screw for Circuit Board Supports
